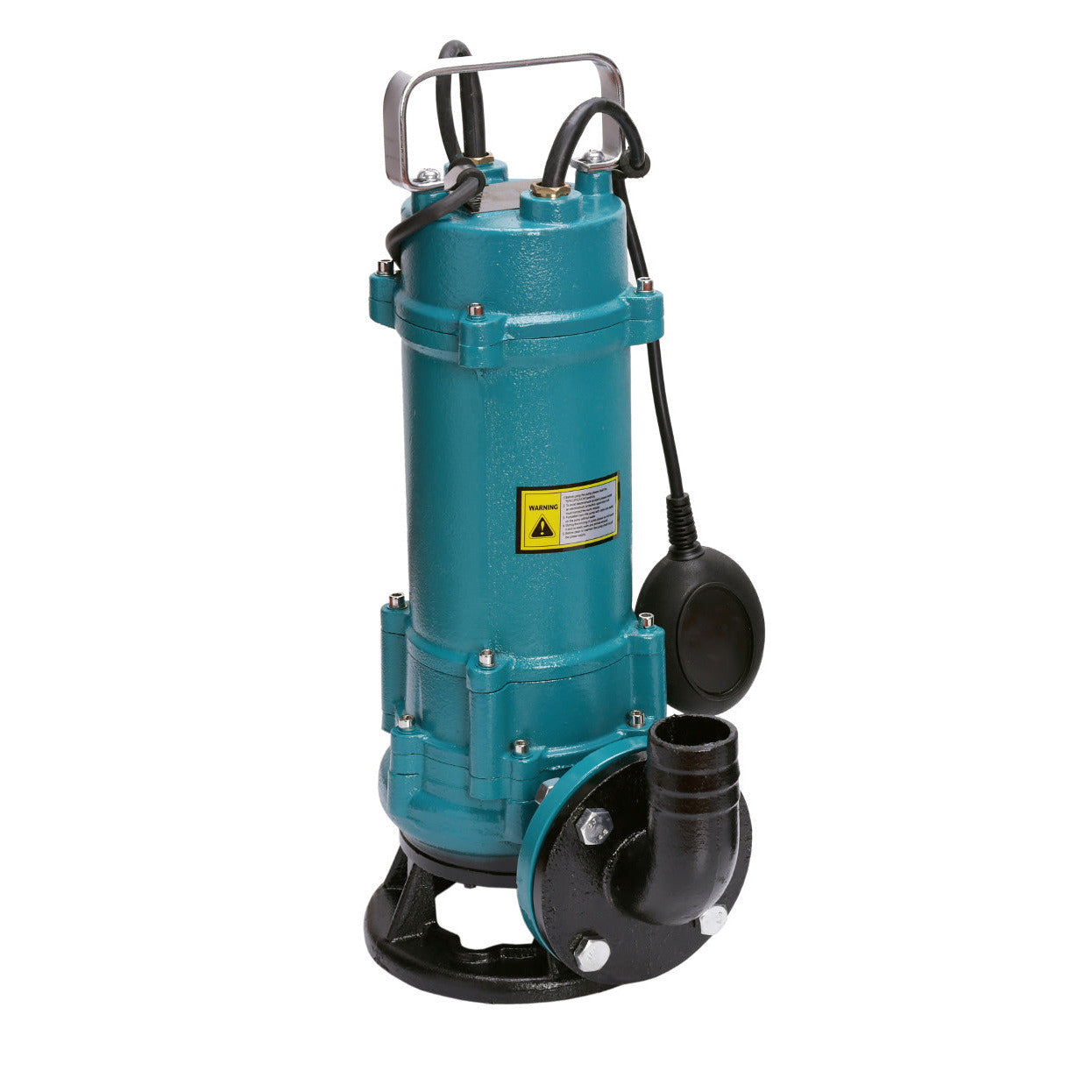

IBO ZWQ 1100 pump 230v

Head: 15m

Flow: 400 L/min

Motor: 1100 W

Voltage: 230v

A submersible pump with a cutting system, designed for customers who
need a strong and reliable product in their professional work. The top quality materials used and very high performance makes ZWQ pumps suitable for operation in harsh conditions.

These pumps are widely used in sewage pumping stations. Pumps are equipped with a three-channel cutting system integrated with the impeller in order to minimize the risk of clogging. All ZWQ pumps are suitable for installation with a guide rail system. The motors have Class F winding insulation and single-phase versions are
additionally equipped with thermal protection mounted in the winding.

Flanges for connecting pipes or fast-connection.  The pumps have bearings manufactured by NSK in Japan. The pumps can be supplied with guide rail systems for installation in pump stations. The guide rail system may be offered separately.

The pumps are equipped with a float switch for automatic operation.

APPLICATION:
Pumping sewage from domestic septic tanks;
draining flooded rooms, houses, garages and premises;
pumping rainwater and surface water from ponds, lakes and rivers.

Outlet: 2"

Amperage: 6.5 A

Diameter: 33 cm

Height:  53 cm

Weight: 29 kg

Cable length: 10 m

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 35°C
• Thermal protection
• Class F Insulation
• Operating mode - continuous
• Protection - IP68

Materials:
• Motor housing: cast iron
• Body: grey cast iron
• Shaft and rotor: stainless steel AISI 304
• Impeller: grey cast iron
• Mechanical seal: ceramics/graphite/NBR
• Cutting knives: grey cast iron/stainless steel AISI 304
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
