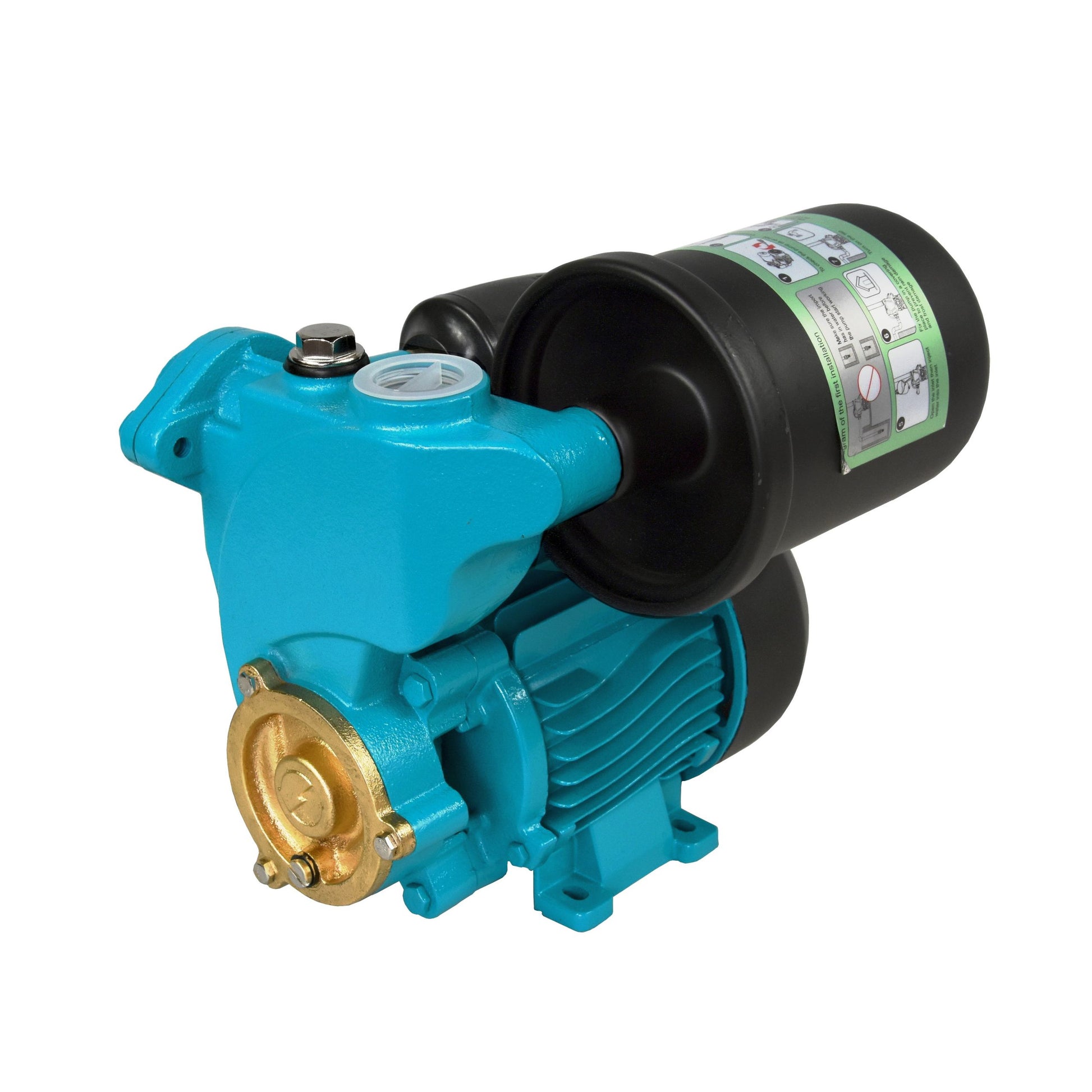

IBO WZCh / 1L booster set

Head: 25 m

Flow: 20 L/min

Motor: 120 W

Voltage: 230v

Pressure tank capacity: 1 L

A small booster set with 1 litre pressure tank.

A single-stage self-priming peripheral surface pump for pumping of clean cold water from own intakes and for increasing pressure. Pump impellers are made of brass. The pump body is made of durable cast iron with the built-in non-return valve. The pump motor is provided with thermal protection. The pumps have a power cable with a plug.

APPLICATION:
Supply of water to small holiday houses, allotments, caravans.

Inlet/outlet: 1"/1"

Suction capacity: 8m

Dimensions Length/Height/Width:  18/19/17 cm

Weight: 5 kg

Operating conditions:
• Maximum liquid temperature 40°C
• Maximum ambient temperature 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44

Materials:
• Housing: cast iron
• Shaft and rotor: stainless steel AISI 304
• Impeller: brass
• Pump end plate: cast iron
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
