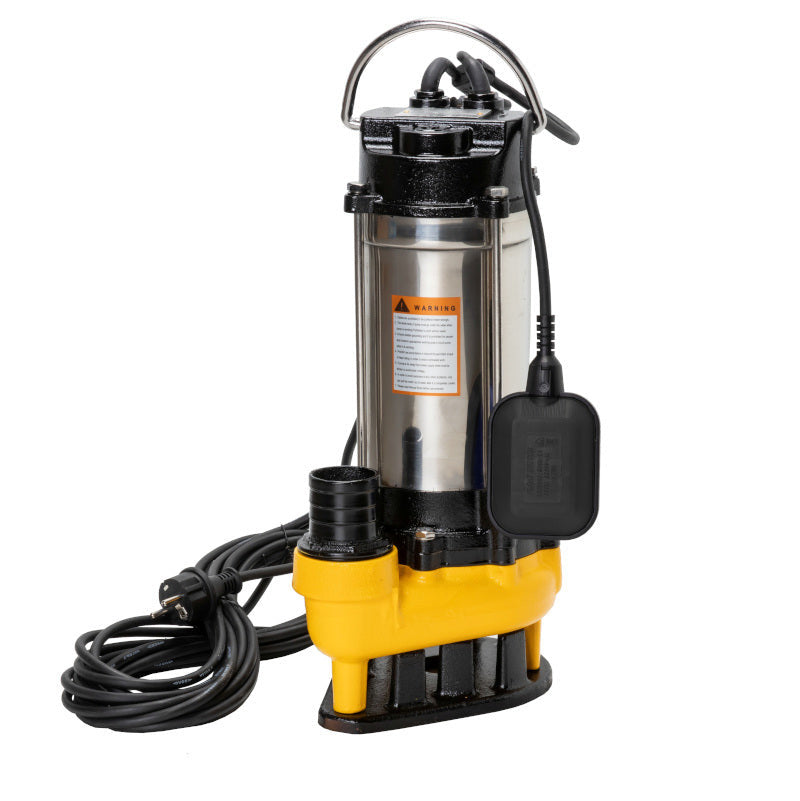

IBO WQF 750 pump

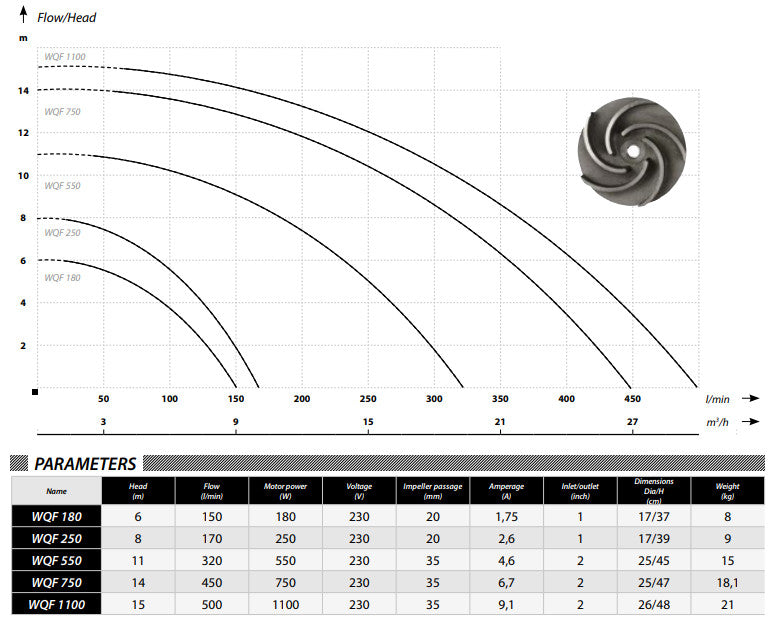

Head: 14m

Flow: 450 L/min

Motor: 750 W

Voltage: 230v

A submersible pump designed for pumping sewage, dirty water, and water from flooded premises. These pumps are equipped with float switches for automatic pump control. Threaded outlet connection and a set of adapters provide connection of the discharge hose with a hose clamp or fast-connection coupling. WQF pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Pumping sewage from domestic septic tanks;
pumping water from flooded rooms, houses, garages and premises;
pumping rainwater and surface water from ponds, lakes and rivers.

Outlet: 2"

Amperage: 6.7 A

Dimensions Diameter/Height:  24/41 cm

Weight: 18 kg

Cable length: 10 m

Operating conditions:
• Maximum liquid temperature 35°C
• Maximum ambient temperature 40°C
• Thermal protection: yes
• Class B Insulation
• Operating mode - continuous
• Protection - IP68
• Water PH: 5-9

Materials:
• Motor housing: stainless steel AISI 304
• Body: grey cast iron
• Shaft and rotor: stainless steel AISI 304
• Impeller: grey cast iron
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
