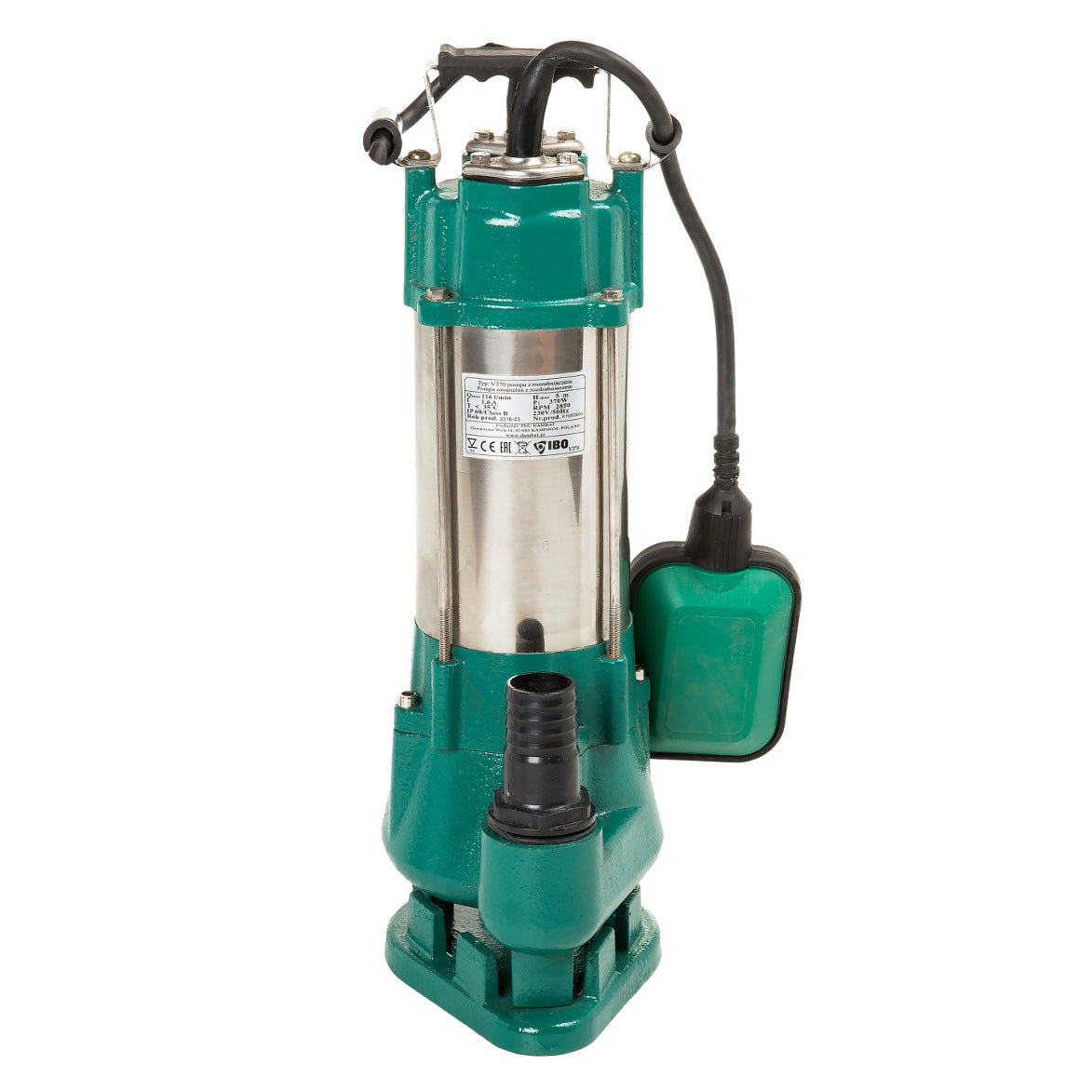

IBO V370 thin pump with cutters

Head: 7.5m

Flow: 130 L/min

Motor: 370 W

Voltage: 230v

A submersible pump with a cutting system designed for pumping domestic sewage. In case of flooding, they can be used for draining rooms.

The robust construction of the pumpmade of durable cast iron, the cutting system with a cutting knife and very reasonable price have made the pumps very popular among individual customers.

The pumps are equipped with a float switch for automatic operation. In order io ensure reliable operation, the pumps are equipped with overload protection mounted on the cable. Pump outlet provides connection of the discharge hose with a hose clamp or fast-connection.

APPLICATION:
Pumping sewage from domestic septic tanks;
draining flooded rooms, houses, garages and premises;
pumping rainwater and surface water from ponds, lakes and rivers.

Outlet: 1¼"

Amperage: 3.8 A

Dimensions Diameter/Height:  17/40 cm

Weight: 11 kg

Cable length: 10 m

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 35°C
• Thermal protection
• Class B Insulation
• Operating mode - continuous
• Protection - IP68
• Water PH: 5 - 9

Materials:
• Motor housing: grey cast iron
• Body: grey cast iron
• Shaft and rotor: stainless steel AISI 304
• Impeller: grey cast iron

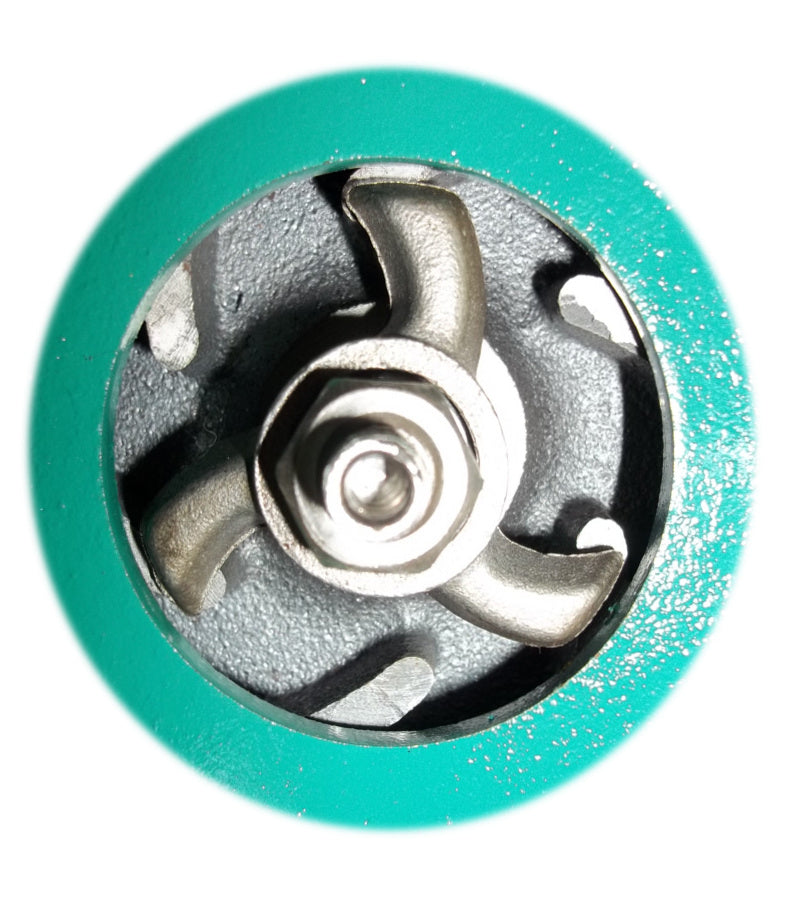

• Cutting knife: grey cast iron/stainless steel AISI 304
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
