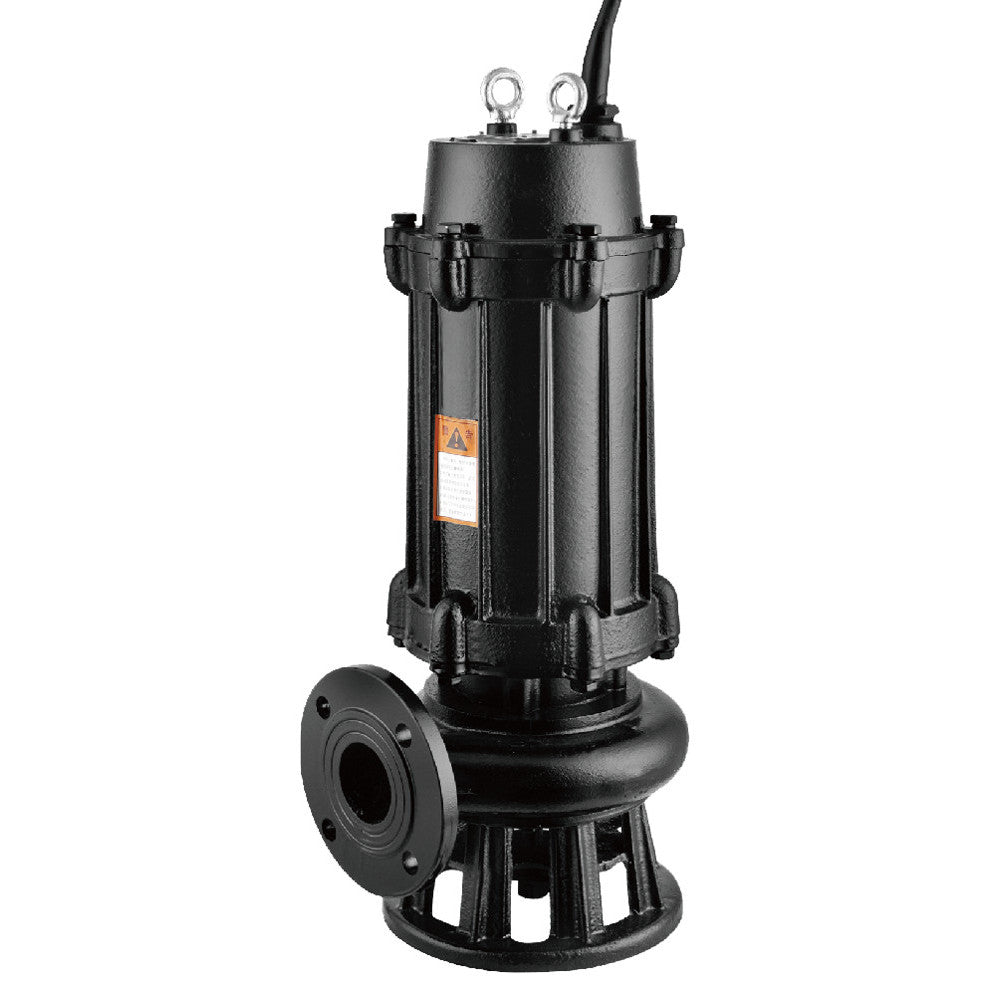

IBO MWQ 1100 pump 230v

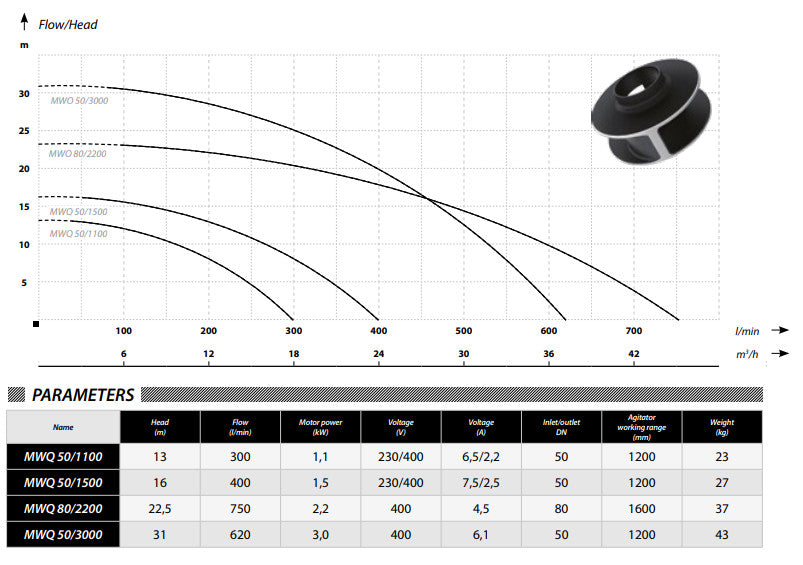

Head: 13m

Flow: 300 L/min

Motor: 1100 W

Voltage: 230v

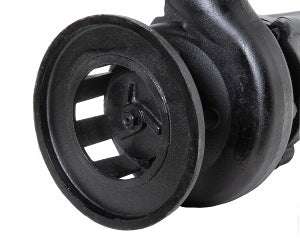

A submersible pump with mixing system, designed for customers who need a strong and reliable product in their professional work. These pumps are widely used in sewage pumping stations. MWQ pumps are designed for pumping raw sewage from pumping stations where dense sludge may be deposited. The pumps have aspecial additional external rotor (agitator) for mixing and splitting heavy sludge.

APPLICATION:
Pumping sewage from domestic septic tanks and sewage treatment plants;
draining flooded rooms, houses, garages and premises;
pumping water from ponds, lakes and rivers.

Outlet: DN 50

Amperage: 6.5 A

Diameter: 33 cm

Height:  47 cm

Weight: 23 kg

Cable length: 10 m

Operating conditions:
• Maximum liquid temperature 35°C
• Thermal protection
• Class F Insulation
• Operating mode - continuous
• Protection - IP68

Materials:
• Motor housing: grey cast iron
• Body: grey cast iron
• Shaft and rotor: stainless steel AISI 304
• Impeller: stainless steel AISI 304
• Agitator: Grey cast iron
• Bearings: NSK
• Mechanical seal: Double, ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
