IBO MH 1300 booster set 100L

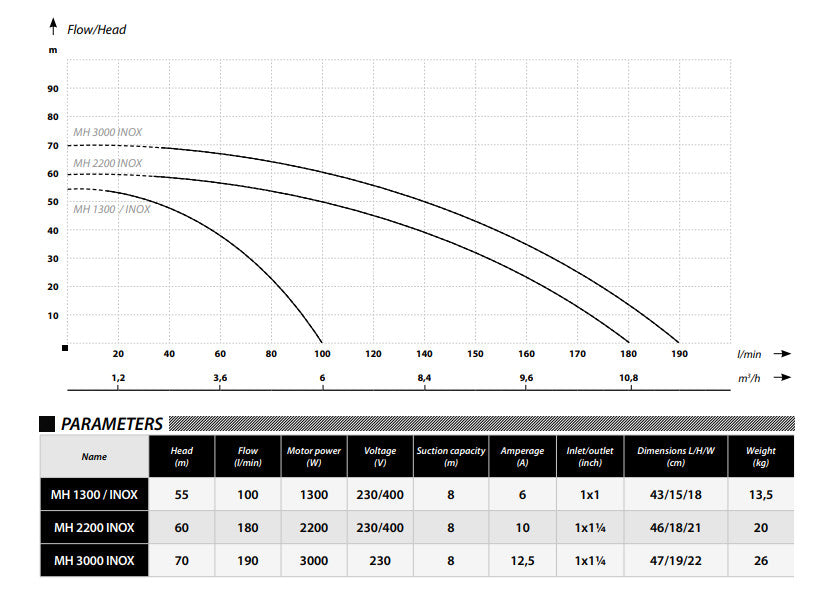

Head: 55 m

Flow: 100 L/min

Motor: 1300 W

Voltage: 230v

Pressure tank capacity: 100 L

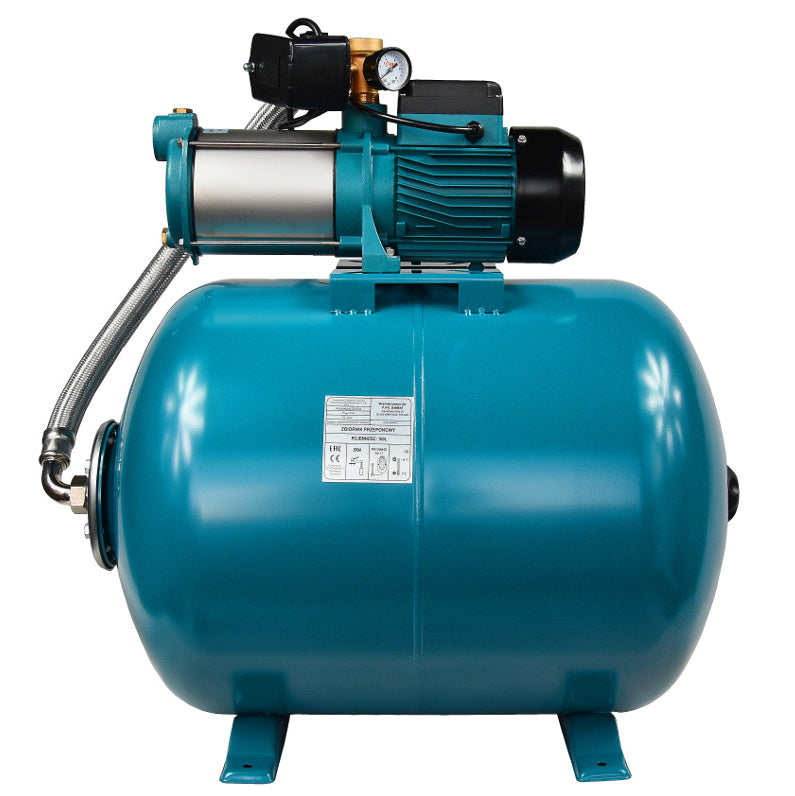

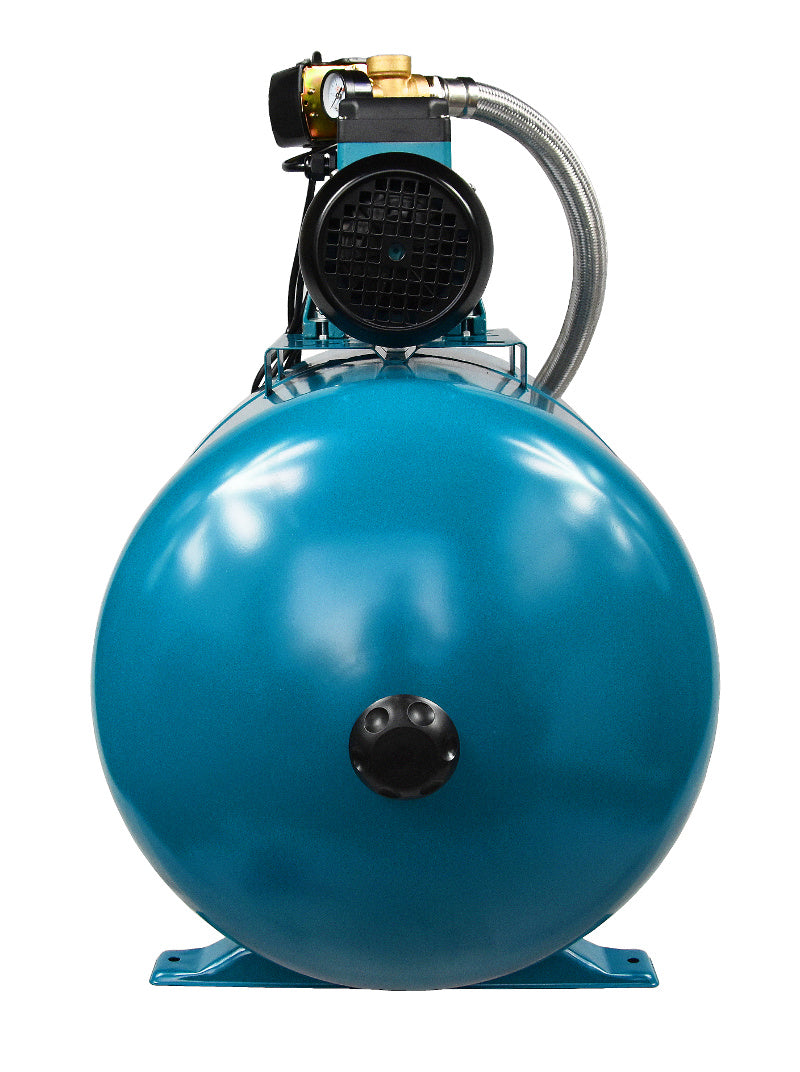

A booster set with 100 litre pressure tank and a silent MH1300 pump. The booster set s a proven solution for automatic supply of water to houses.  The size of the tank should be selected according to particular needs and requirements.

Inlet/outlet: 1"/1"

Suction capacity: 8m

Dimensions of the whole set (rigid elements) Length/Height/Width:  72,5/71,5/47 cm

Dimensions of the pressure tank Length/Height/Width:  72,5/47/47 cm

Weight: 29 kg

Warranty: 24 months

This set includes:
• pump
• pressure tank
• pressure switch
• pressure gauge
• five-way delivery outlet
• anti-vibration hose with elbow

Operating conditions:
Pump:
• Maximum liquid temperature: 35°C
• Maximum ambient temperature: 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44
Pressure tank:
• Working temperature: 0-60°C
• Maximum tested PT pressure: 8 bar
• Pre charged pressure:1.7 (+/- 10%) bar

Materials:
Pump:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Pump end plate: stainless steel AISI 304
• Venturi tube: Noryl
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP
Pressure tank:
• Corpse: carbon steel
• Coating: anti-corrosion varnish
• Membrane: EPDM rubber

This item will be delivered in two parcels.

Please check if you have a non-return valve below water level in a well. Otherwise there is a risk of dry-run.

Please check air pressure in a membrane every 4 months. This pressure should be at circa 1.7 bar.
