IBO MH 3000 INOX booster set 100L

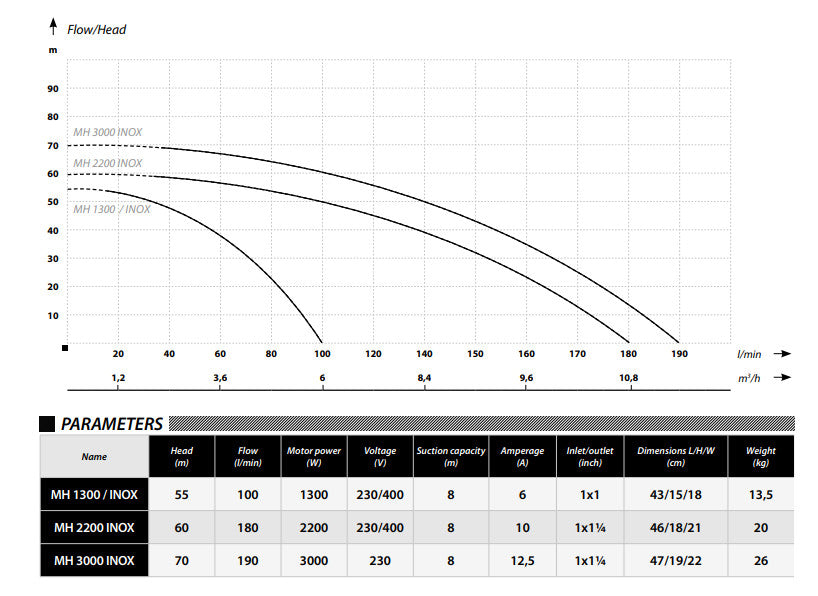

Head: 70 m

Flow: 190 L/min

Motor: 3000 W

Voltage: 230v

Pressure tank capacity: 100 L

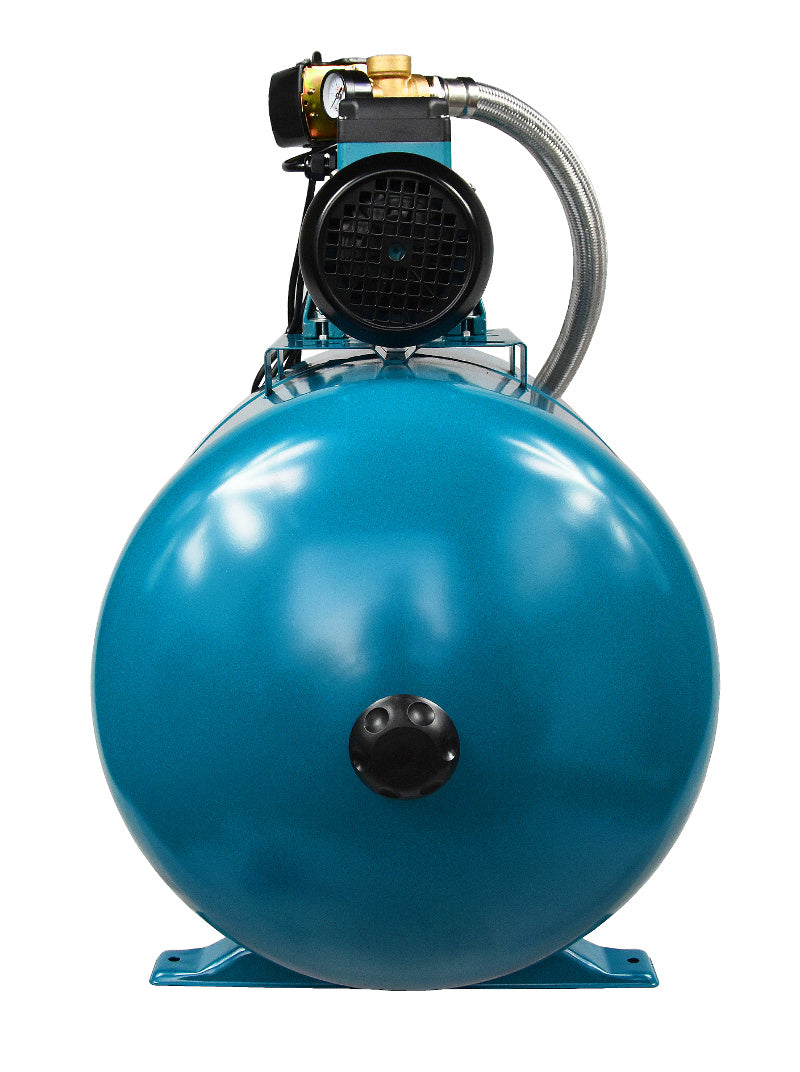

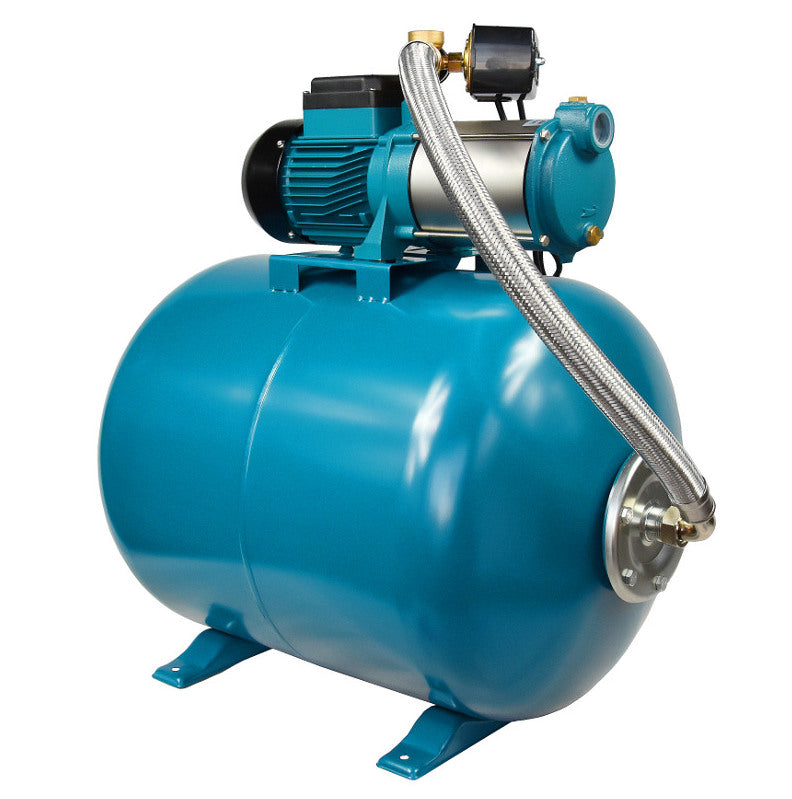

A booster set with 100 litre pressure tank and MH 3000 INOX pump. The booster set s a proven solution for automatic supply of water to houses.  The size of the tank should be selected according to particular needs and requirements.

MH 3000 pump has a stainless steel impeller and body (INOX design). Due to their high performance, efficiency and parameters, these pumps are often used to supply water to houses and agricultural holdings. Dueto low-noise operation, they can be installed inside houses.

Inlet/outlet: 1¼"/1"

Suction capacity: 8m

Dimensions of the whole set (rigid elements) Length/Height/Width:  80/75/46 cm

Dimensions of the pressure tank Length/Height/Width:  70/46/46 cm

Weight: 41 kg

Warranty: 24 months

This set includes:
• pump
• pressure tank
• pressure switch
• pressure gauge
• five-way delivery outlet
• anti-vibration hose with elbow

Operating conditions:
Pump:
• Maximum liquid temperature: 35°C
• Maximum ambient temperature: 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44
Pressure tank:
• Working temperature: 0-45°C
• Maximum tested PT pressure: 8 bar
• Pre charged pressure:1.7 (+/- 10%) bar

Materials:
Pump:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: stainless steel AISI 304
• Pump end plate / Frame: cast iron
• Venturi tube: Noryl
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP
Pressure tank:
• Corpse: carbon steel
• Coating: anti-corrosion varnish
• Membrane: EPDM rubber

This item will be delivered in two parcels.

Please check if you have a non-return valve below water level in a well. Otherwise there is a risk of dry-run.

Please check air pressure in a membrane every 4 months. This pressure should be at circa 1.7 bar.
