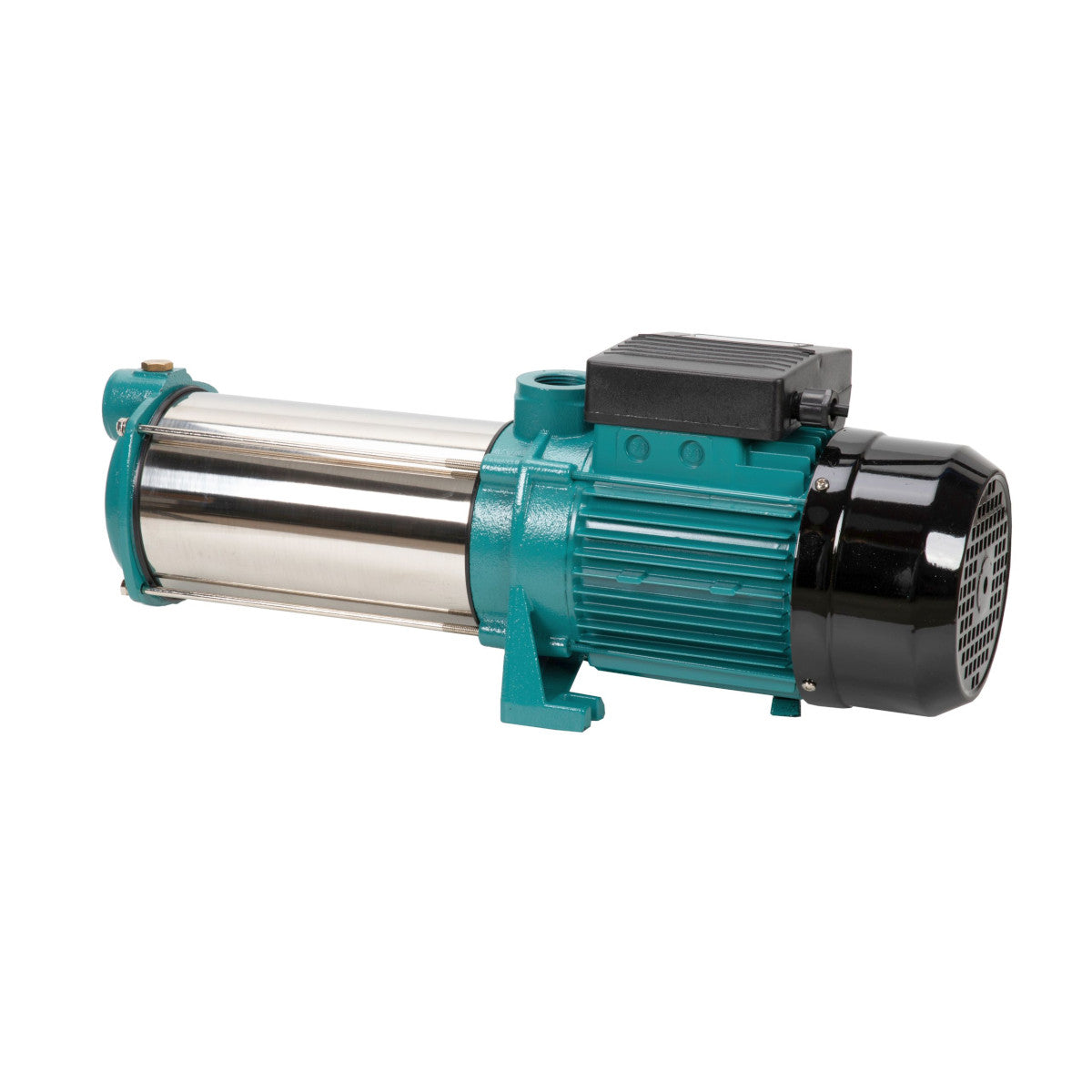

IBO MH 2500 INOX 230v pump

Head: 85m

Flow: 100 L/min

Motor: 2500 W

Voltage: 230v

A group of multi-stage self-priming centrifugal pumps designed for pumping of clean cold water from own intakes and for increasing pressure.

The pumps are equipped with the Venturi tube system for increased suction capacity. MH pumps are available in two variants: with stainless steel impellers (INOX design) or with noryl impellers.

All pumps have a stainless steel body. Due to their high performance, efficiency and parameters, the pumps are often used to supply water to houses and agricultural holdings. Due to low-noise operation, the pumps can be installed inside houses.

The pumps are equipped with thermal protection mounted in the motor winding. MH pumps are also available with hydrophore sets and with PC intelligent pump controllers (PC15, PC16, PC10P, PC59).

Inlet/outlet: 1"/1"

Suction capacity: 8m

Amperage: 11 A

Dimensions Length/Height/Width:  55/21/18 cm

Weight: 24 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 35°C
• Maximum ambient temperature 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44

Materials:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: (stainless steel AISI 304)
• Frame: cast iron
• Pump end plate: stainless steel AISI 304
• Venturi tube: Noryl
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP

Color on photos may be different than in reality.
