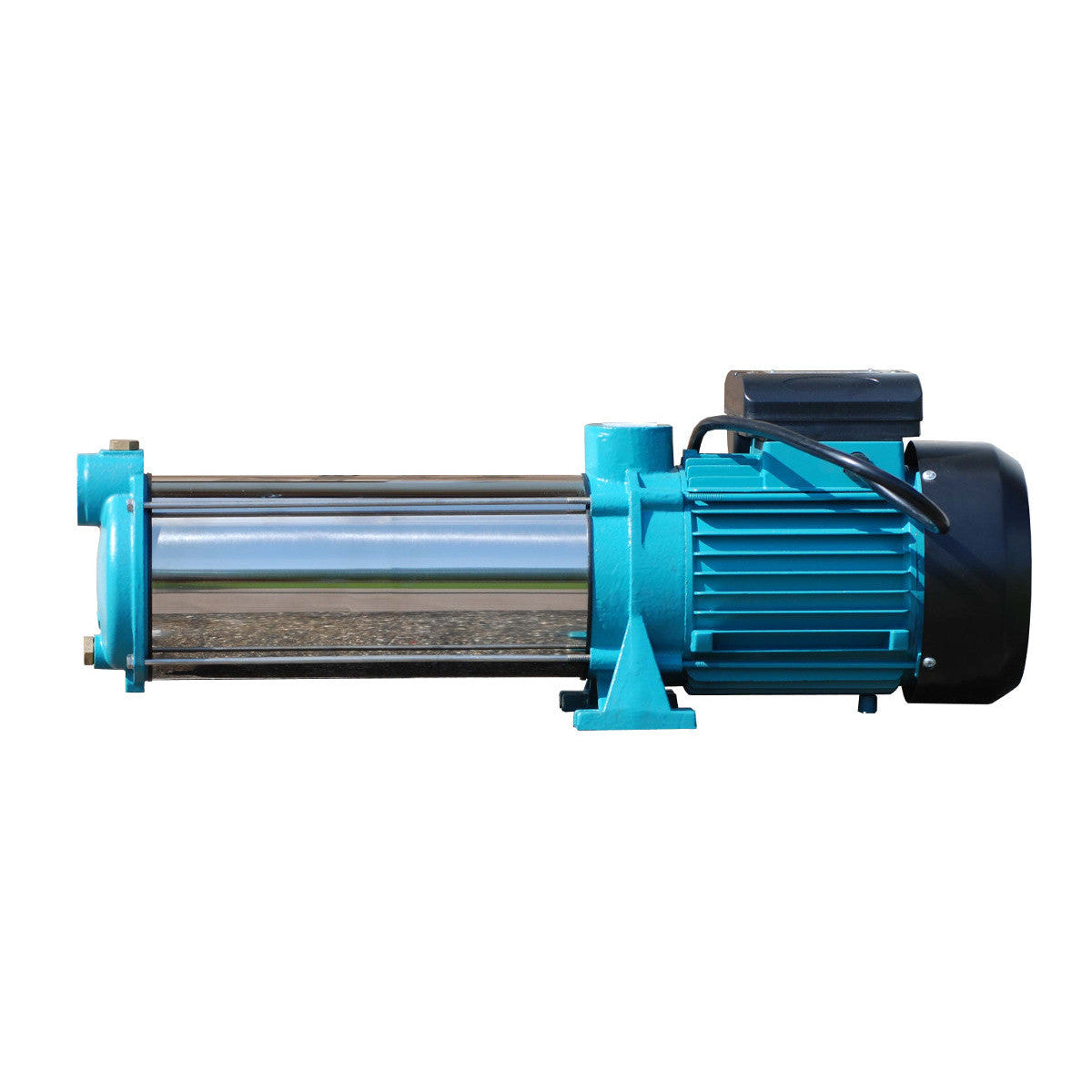

IBO MH 1800 230v pump

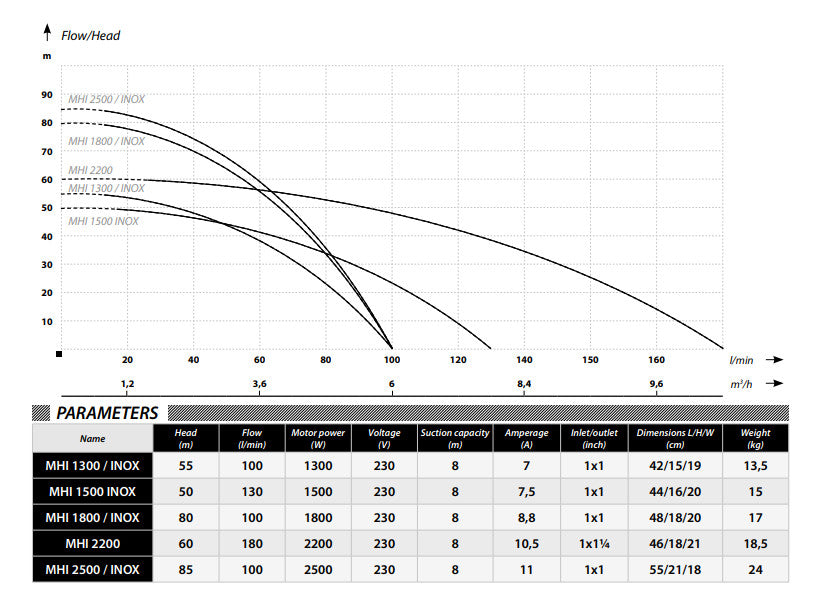

Head: 80m

Flow: 100 L/min

Motor: 1800 W

Voltage: 230v

A multi-stage self-priming centrifugal pump designed for pumping of clean cold water from own intakes and for increasing pressure.

Theese pumps are equipped with the Venturi tube system for increased suction capacity. MHI pumps are available in two variants: with stainless steel impellers (INOX design) or with noryl impellers.

All pumps have a stainless steel body. Due to low-noise operation, the pumps can be installed inside houses. The pumps are equipped with thermal protection mounted in the motor winding.

Inlet/outlet: 1"/1"

Suction capacity: 8m

Amperage:  8.8 A

Dimensions Length/Height/Width:  46/18/20 cm

Weight: 19 kg

Operating conditions:
• Maximum liquid temperature 40°C
• Maximum ambient temperature 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44

Materials:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: noryl,
• Frame: cast iron,
• Pump end plate: cast iron,
• Venturi tube: noryl
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP

Color on photos may be different than in reality.
