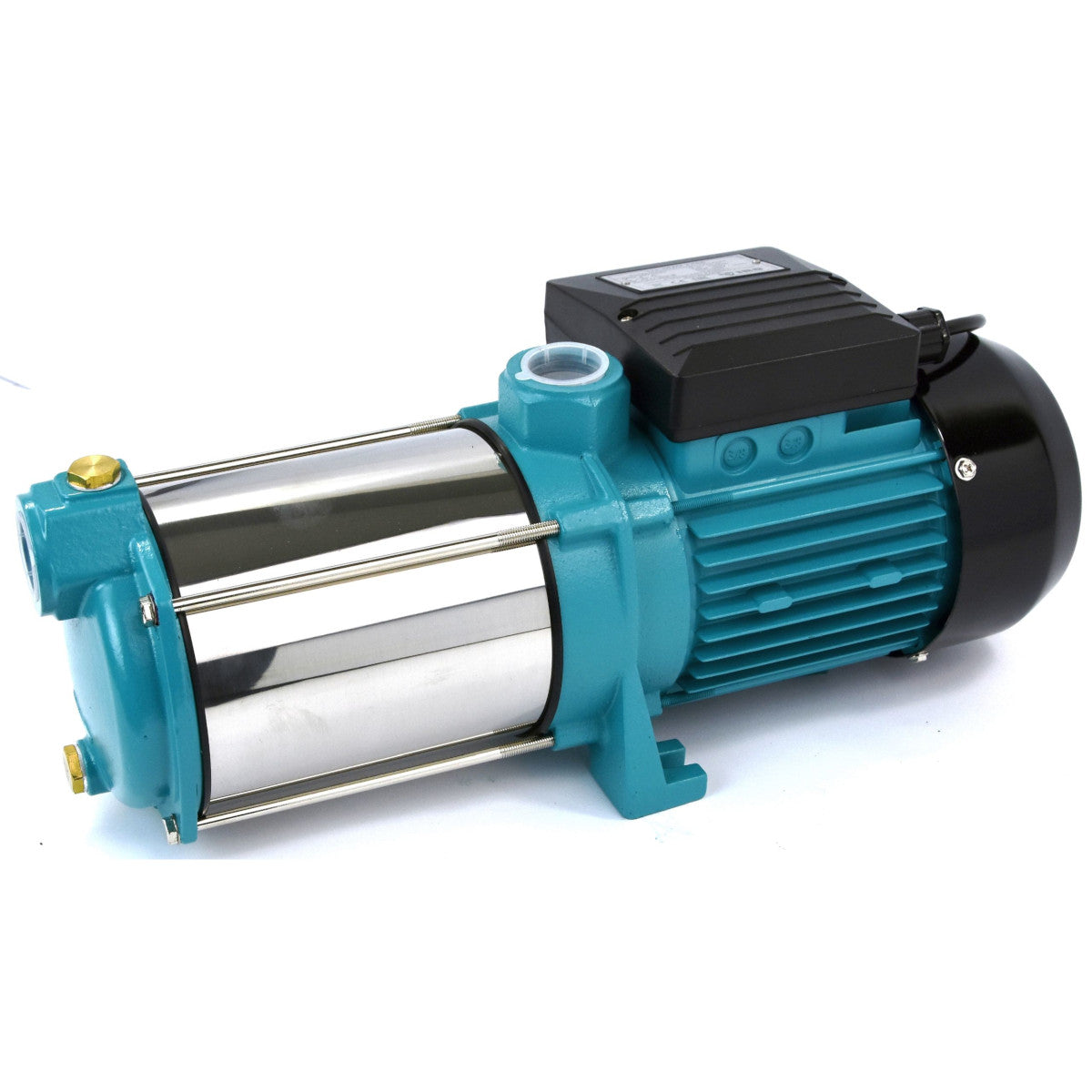

IBO MH 1300 400v pump

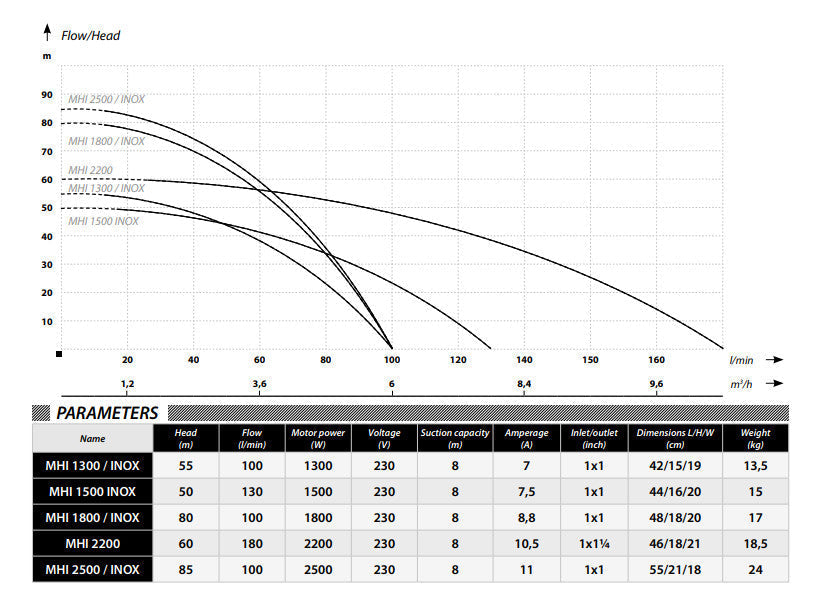

Head: 55 m

Flow: 100 L/min

Motor: 1300 W

Voltage: 400v

A multi-stage self-priming centrifugal pump designed for pumping of clean cold water from own intakes and for increasing pressure.

All pumps have a stainless steel body. Due to low-noise operation, the pumps can be installed inside houses. The pumps are equipped with thermal protection mounted in the motor winding.

Inlet/outlet: 1"/1"

Suction capacity: 8m

Amperage:  6 A

Dimensions Length/Height/Width:  43/15/18 cm

Weight: 13.5 kg

Operating conditions:
• Maximum liquid temperature: 35°C
• Maximum ambient temperature: 40°C
• Insulation class: B
• Operating mode: continuous
• Protection - IP44

Materials:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: noryl
• Frame: cast iron,
• Pump end plate: cast iron,
• Venturi tube: noryl
• Mechanical seal: ceramics/graphite/NBR

Rotational speed of the electric motor: 2850RMP

Color on photos may be different than in reality.
