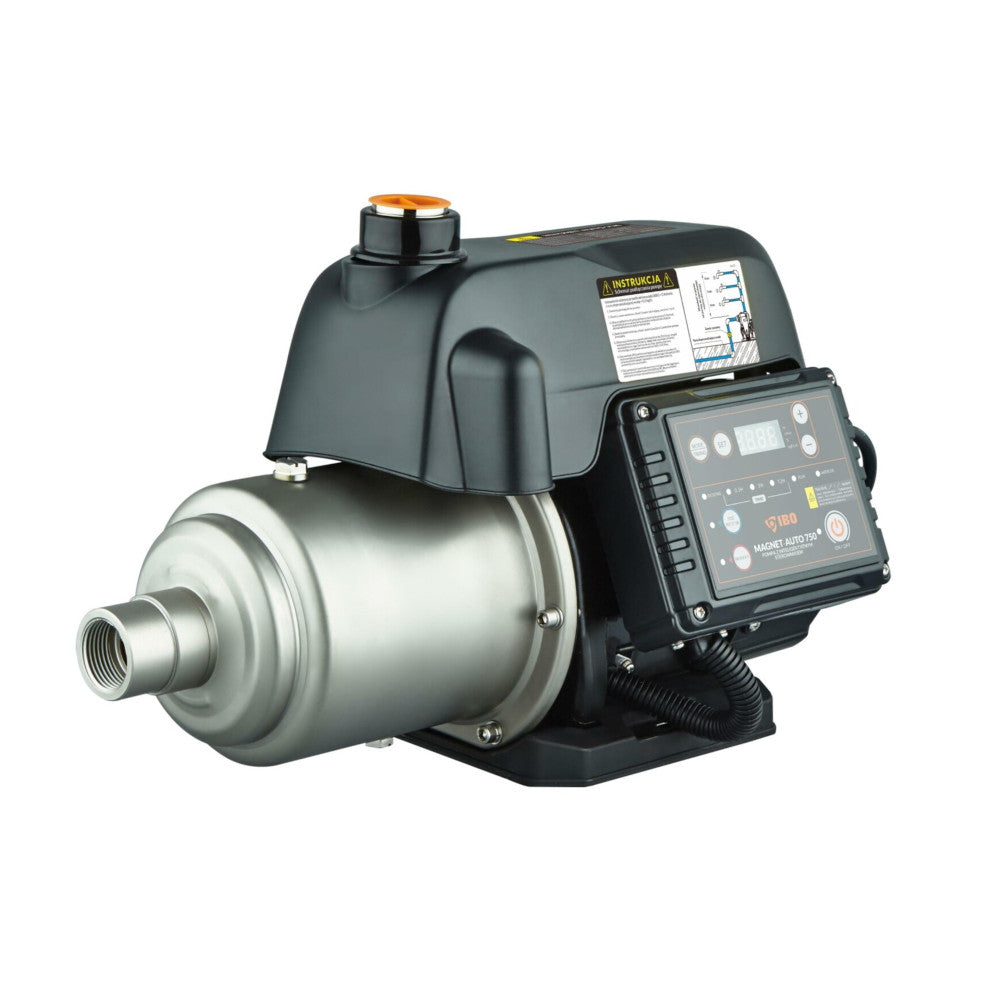

IBO MAGNET-AUTO 750 pump with inverter

Head: 48m

Flow: 115 L/min

Motor: 750 W

Voltage: 230v

IBO MAGNET AUTO 750 is a compact device designed to provide households with clean water from their own water intakes (wells) or to increase pressure from the water supply network.

The pumps are equipped with a frequency inverter that guarantees constant pressure in all water taps, soft starts of the motor and low energy consumption, silent operation, easy of installation and use.

They also provide with protection against dry running, water hammer, pressure decrease or increase, or motor overload.


APPLICATION:
Supply of water to houses, gardens, industrial washing facilities,

ADVANTAGES:
• Very high efficiency despite utilising a small 750W motor
• Silent operation allowing the device to be installed even in usable rooms
• Easy use
• Soft start of a motor
• Constant pressure
• Continuous work
• Protection against dry running, overload, overvoltage/undervoltage, motor overload, water hammer

Inlet/outlet: 1"/ 1"

Suction capacity: 8m

Amperage: 5/8 A

Dimensions Length/Height/Width:  43 / 27 / 21 cm

Speed range (RPM): 0-4000

Frequency range: 30-50Hz

Weight: 9 kg


Materials:
• Housing: plastic
• Impeller: PPO
• Diffuser: PPO
• Shaft and rotor: stainless steel AISI 304
• Inverter display: LED
• Mechanical sealing: Ceramics/graphite

Product color on pictures may be different than in reality.
