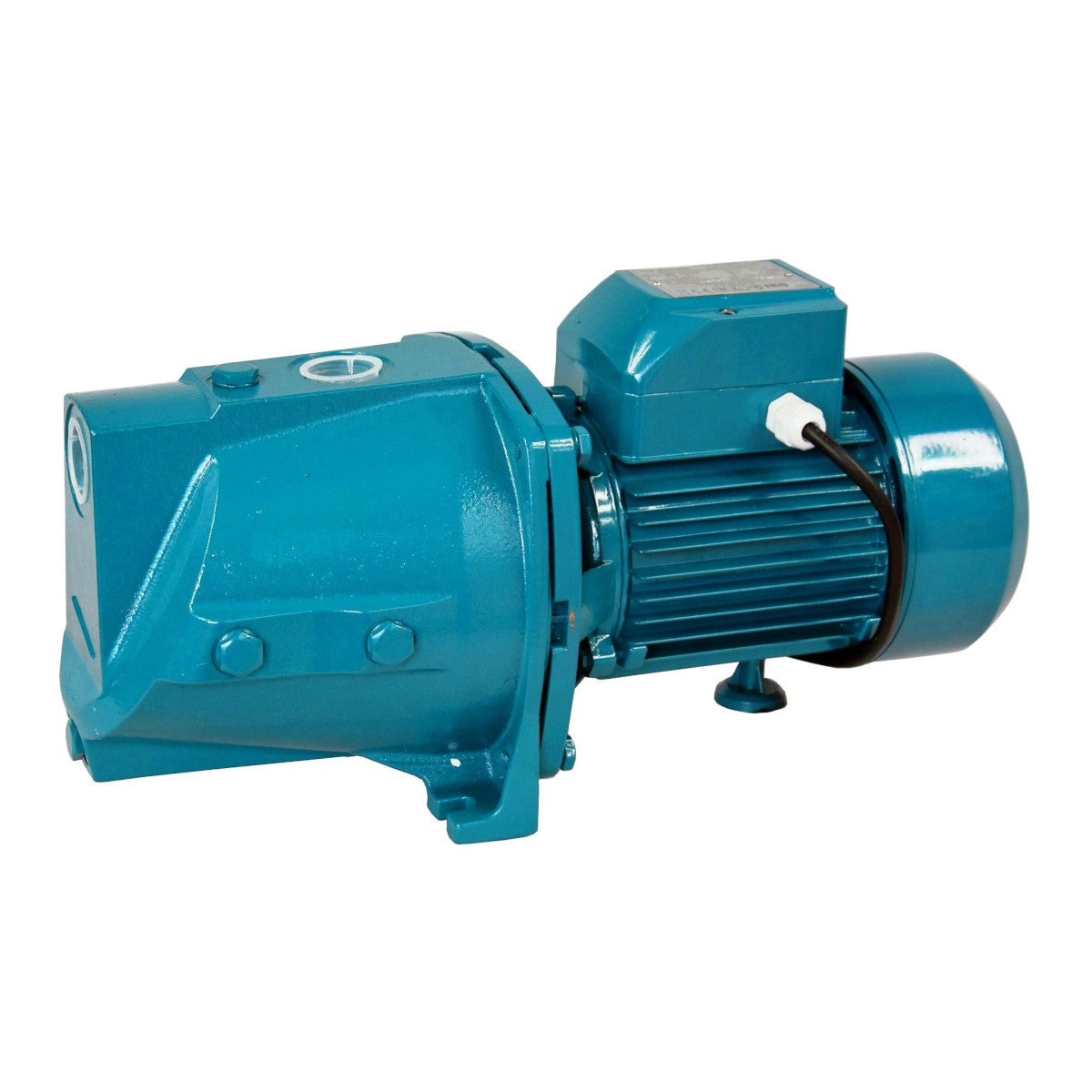

IBO JSW 200 pump

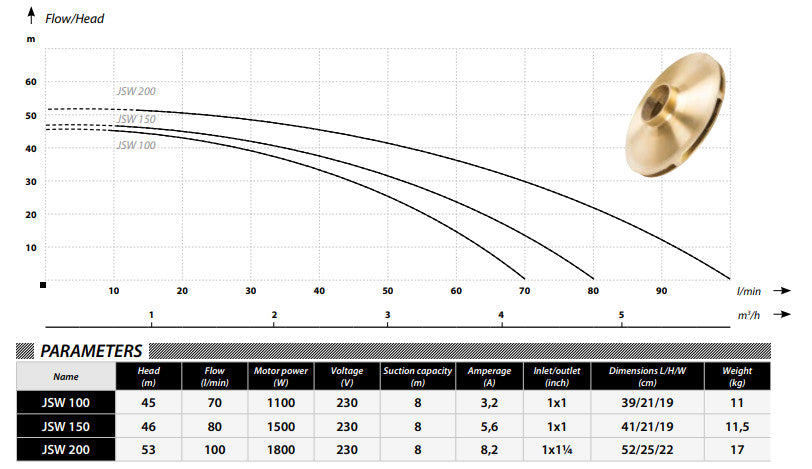

Head: 53m

Flow: 100 L/min

Motor: 1800 W

Voltage: 230v

Single-stage self-priming centrifugal pumps equipped with the Venturi tube system for increased suction capacity, designed for pumping of clean cold water from own intakes and for increasing pressure. The JSW pumps are very efficient and additionally provide exceptionally good water suction capacity. JSW 200 pumps have a brass impeller.

All JSW pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Supply of water to houses and agricultural holdings, as well as for irrigation of gardens. When combined with pressure tanks, the pumps can be used for single- and multi-family residential housing, in industrial applications and for irrigation purposes.

Inlet/outlet: 1"/1¼"

Suction capacity: 8m

Amperage: 8.2 A

Dimensions Length/Height/Width:  52/25/22 cm

Weight: 17 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 35 °C
• Maximum ambient temperature 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44

Materials:
• Housing: cast iron
• Shaft and rotor: stainless steel AISI 304
• Impeller: brass
• Frame:  aluminium
• Pump end plate: stainless steel AISI 304
• Venturi tube: Noryl
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
