IBO JET100a booster set 24L fix

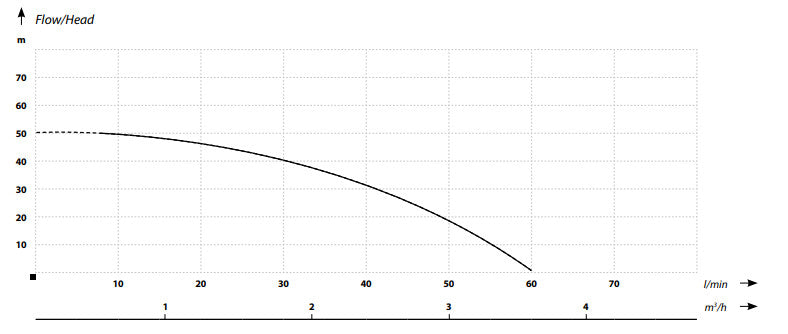

Head: 50 m

Flow: 60 L/min

Motor: 1100 W

Voltage: 230v

Pressure tank capacity: 24 L

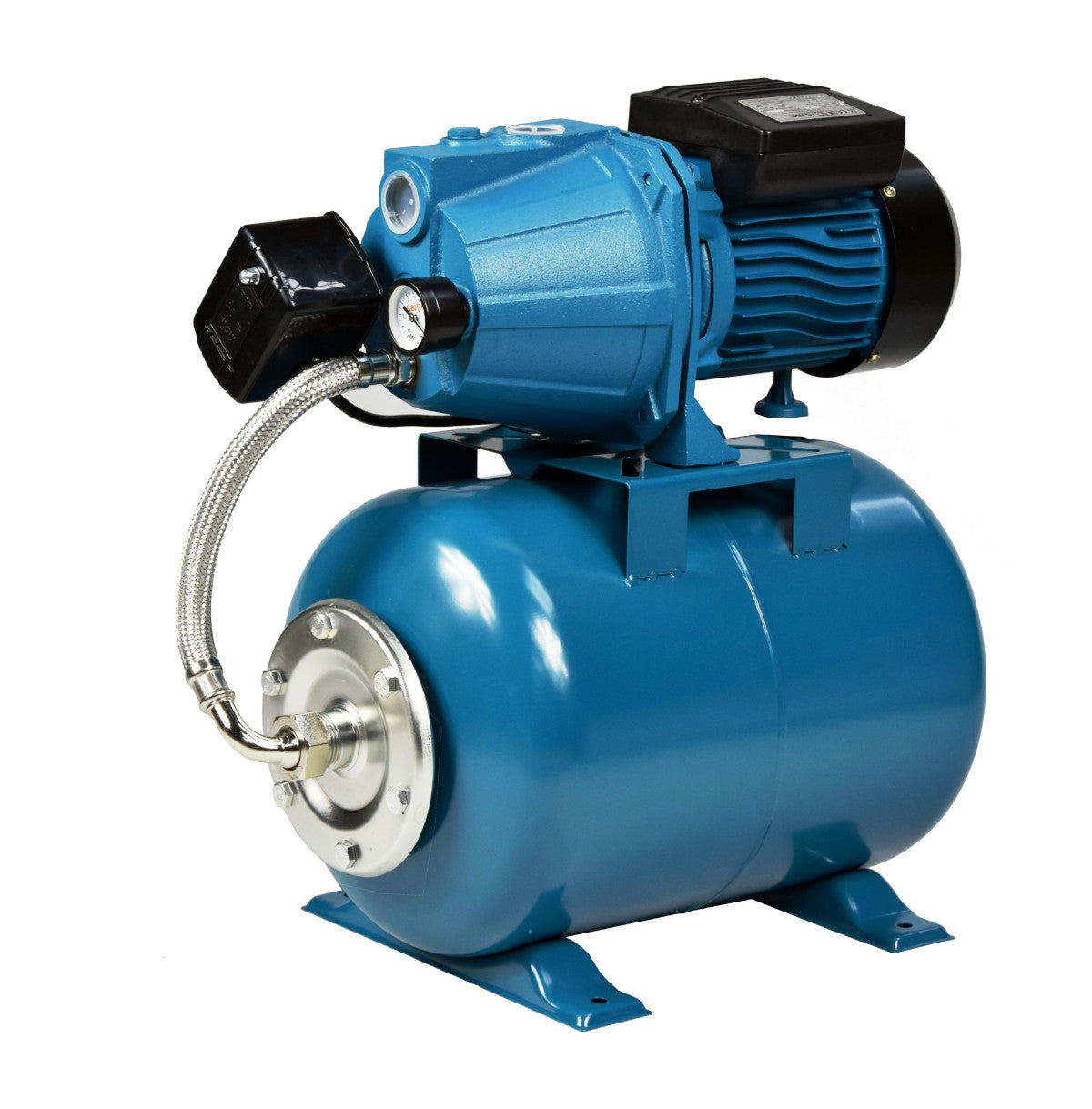

A small booster set with 24 litre pressure tank and a JET100a pump. The booster set s a proven solution for automatic supply of water to houses.  The size of the tank should be selected according to particular needs and requirements.

Inlet/outlet: 1"/1"

Suction capacity: 8m

Dimensions of the whole set (rigid elements) Length/Height/Width:  50/60/29

Dimensions of the pressure tank Length/Height/Width:  43/29/29 cm

Weight: 17 kg

Warranty: 24 months

This set includes:
• pump
• pressure tank
• pressure switch
• pressure gauge
• anti-vibration hose

Operating conditions:
Pump:
• Maximum liquid temperature: 35°C
• Maximum ambient temperature: 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44
Pressure tank:
• Working temperature: 0-45°C
• Maximum tested PT pressure: 8 bar
• Pre charged pressure:1.7 (+/- 10%) bar

Materials:
Pump:
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Pump end plate / Frame: cast iron
• Venturi tube: Noryl
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP
Pressure tank:
• Corpse: carbon steel
• Coating: anti-corrosion varnish
• Membrane: EPDM rubber

Please check if you have a non-return valve below water level in a well. Otherwise there is a risk of dry-run.

Please check air pressure in a membrane every 4 months. This pressure should be at circa 1.7 bar.

Product color on pictures may be different than in reality.
