IBO HP 1500 INOX booster set 50L INOX

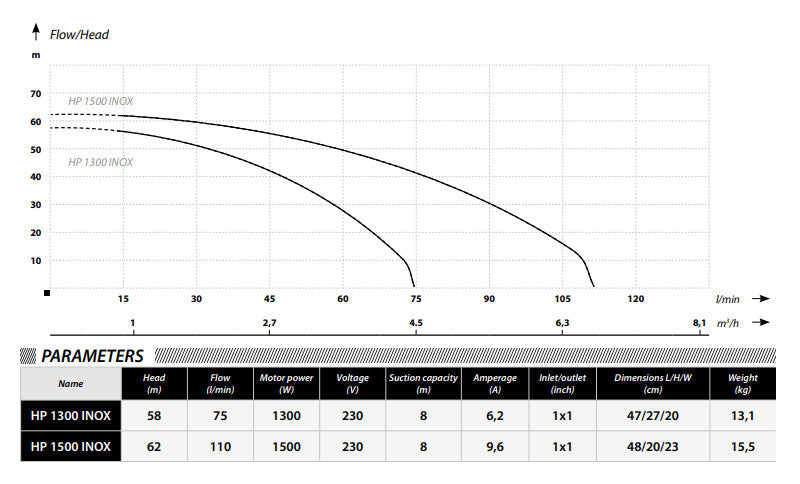

Head: 62  m

Flow: 110 L/min

Motor: 1500 W

Voltage: 230v

Pressure tank capacity: 50 L

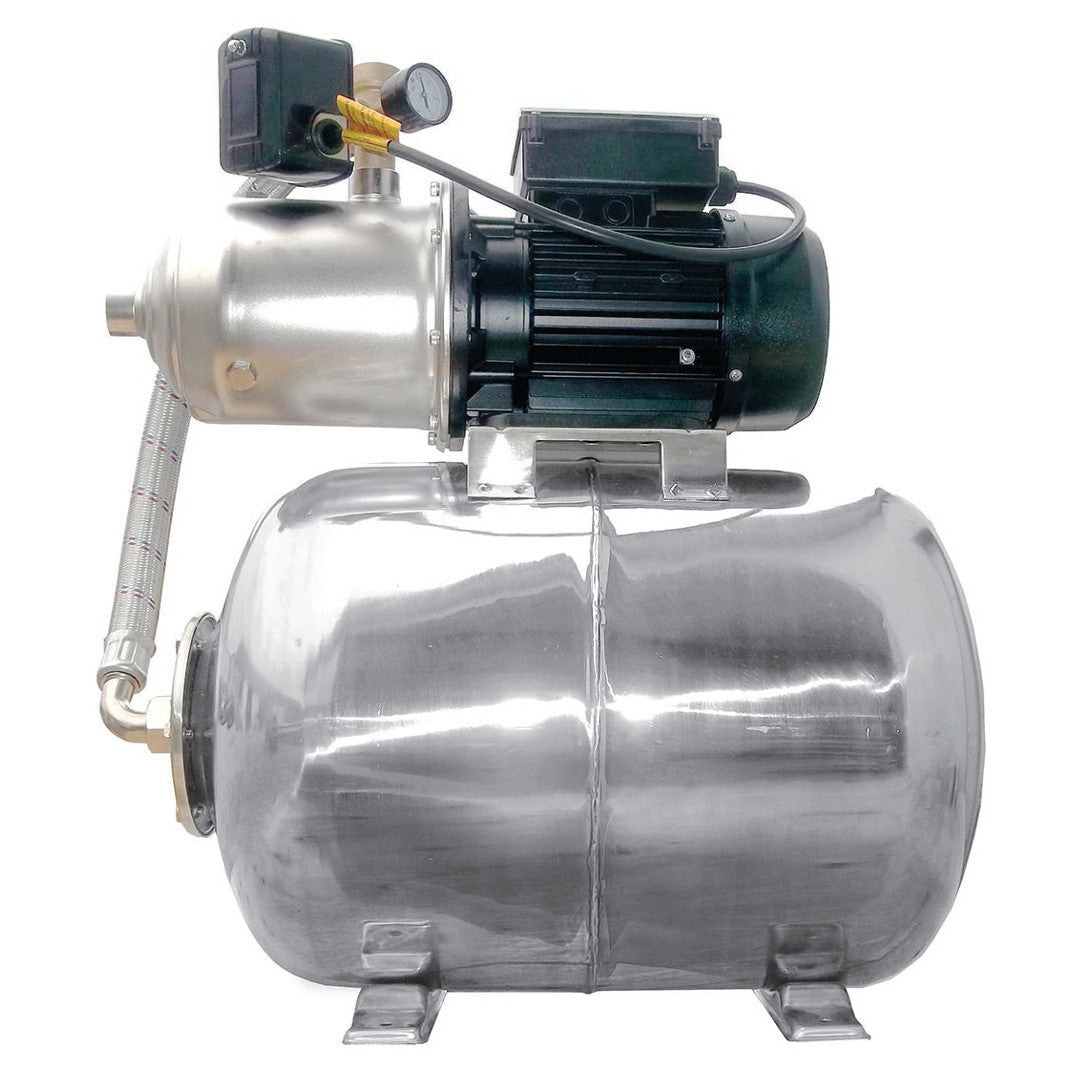

A booster set with 50 litre pressure tank and HP 1500 INOX pump. Due to stainless steel applied, this item can be installed in wells and wet room without the risk of early corrosion. The booster set s a proven solution for automatic supply of water to houses.  The size of the tank should be selected according to particular needs and requirements.

Inlet/outlet: 1"/1"

Suction capacity: 8m

Dimensions of the whole set (rigid elements) Length/Height/Width:  60/68/38 cm

Dimensions of the pressure tank Length/Height/Width:  55/38/38 cm

Weight: 28 kg

Warranty: 24 months

This set includes:
• pump
• pressure tank
• pressure switch
• pressure gauge
• five-way delivery outlet
• anti-vibration hose with elbow

Operating conditions:
Pump:
• Maximum liquid temperature 70°C
• Maximum ambient temperature 50°C
• Class F Insulation
• Operating mode - continuous
• Protection - IP55
Pressure tank:
• Working temperature: 0-45°C
• Maximum tested PT pressure: 8 bar
• Pre charged pressure:1.7 (+/- 10%) bar
• Built-in manometer

Materials:
Pump:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Venturi tube: Noryl
• Pump end plate: stainless steel AISI 304
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP
Pressure tank:
• Corpse: stainless steel AISI 304
• Membrane: EPDM rubber

Please check if you have a non-return valve below water level in a well. Otherwise there is a risk of dry-run.

Please check air pressure in a membrane every 4 months. This pressure should be at circa 1.7 bar.

Product color on pictures may be different than in reality.
