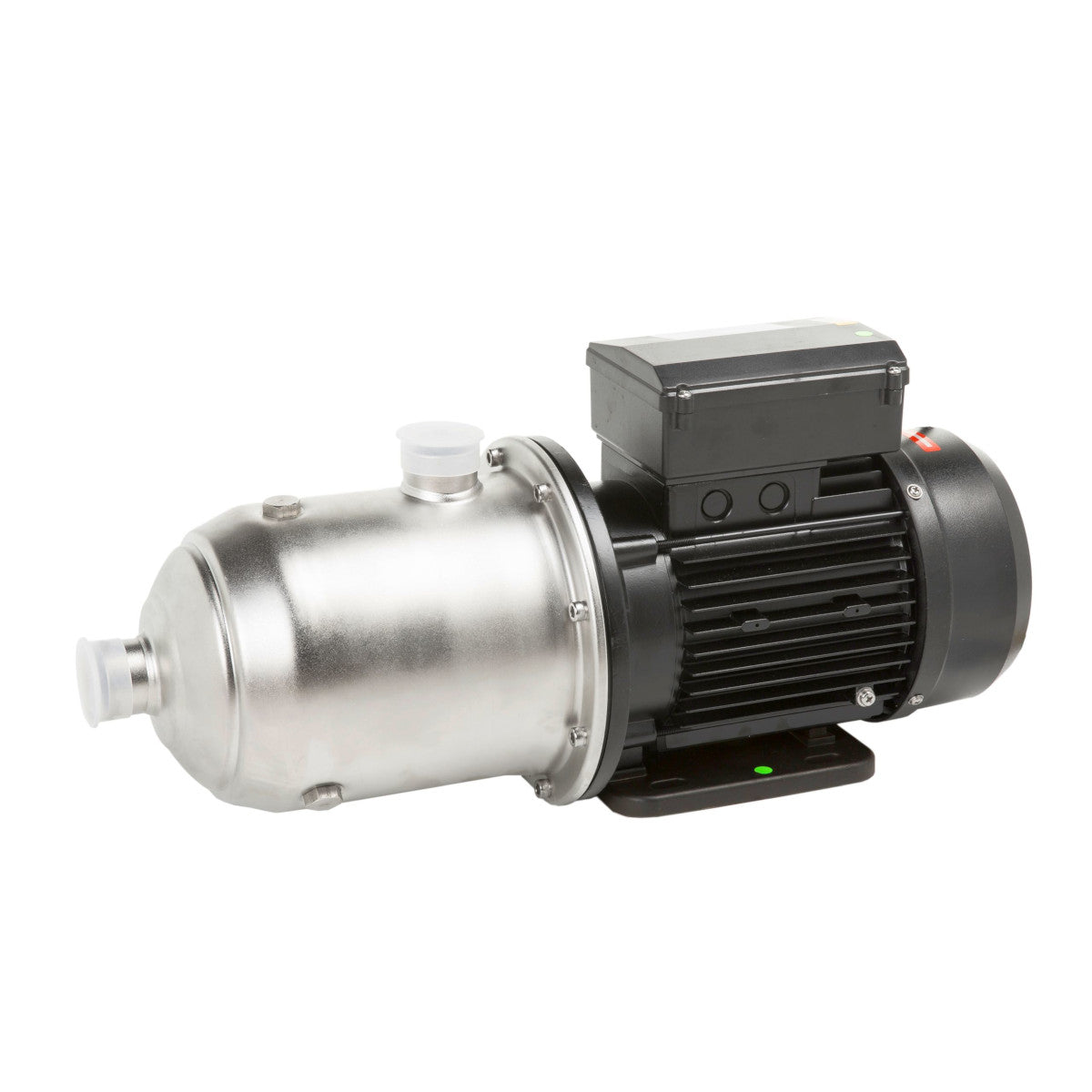

IBO HP 1500 INOX pump

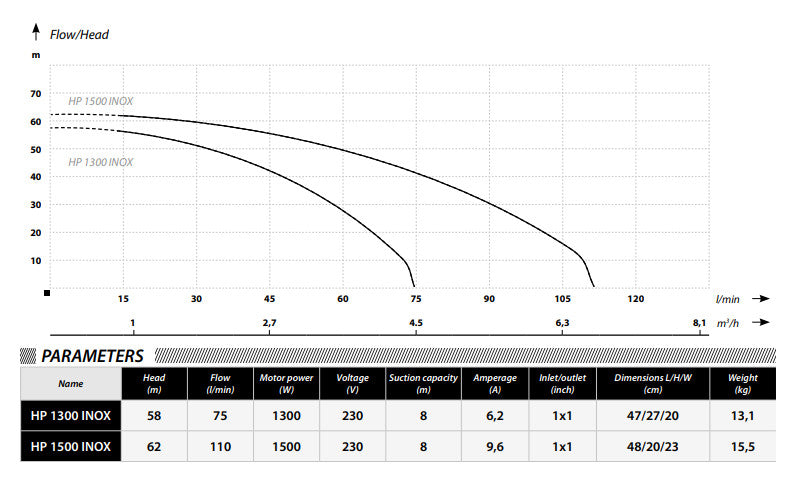

Head: 62m

Flow: 110 L/min

Motor: 1500 W

Voltage: 230v

The pump for pumping of clean cold water from own intakes and for increasing pressure. HP Series are multi-stage self-priming centrifugal surface pumps equipped with the Venturi tube system for increased suction capacity. Sections of pump body and shaft that come in contact with water are made of stainless steel (INOX).

The pump is manufactured to the highest quality standards in terms of the design and materials used. The pump has a power cable with a plug, and the pump motor is provided with thermal protection.

APPLICATION:
Supply of water to houses, gardens, industrial washing facilities, air conditioning and cooling systems. When combined with pressure tanks, the pumps can be used for houses and in industrial applications.

Inlet/outlet: 1"/1"

Suction capacity: 8m

Amperage: 9.6 A

Dimensions Length/Height/Width:  48/20/23 cm

Weight: 15 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 70°C
• Maximum ambient temperature 50°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP55

Materials:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Venturi tube: Noryl
• Pump end plate: stainless steel AISI 304
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
