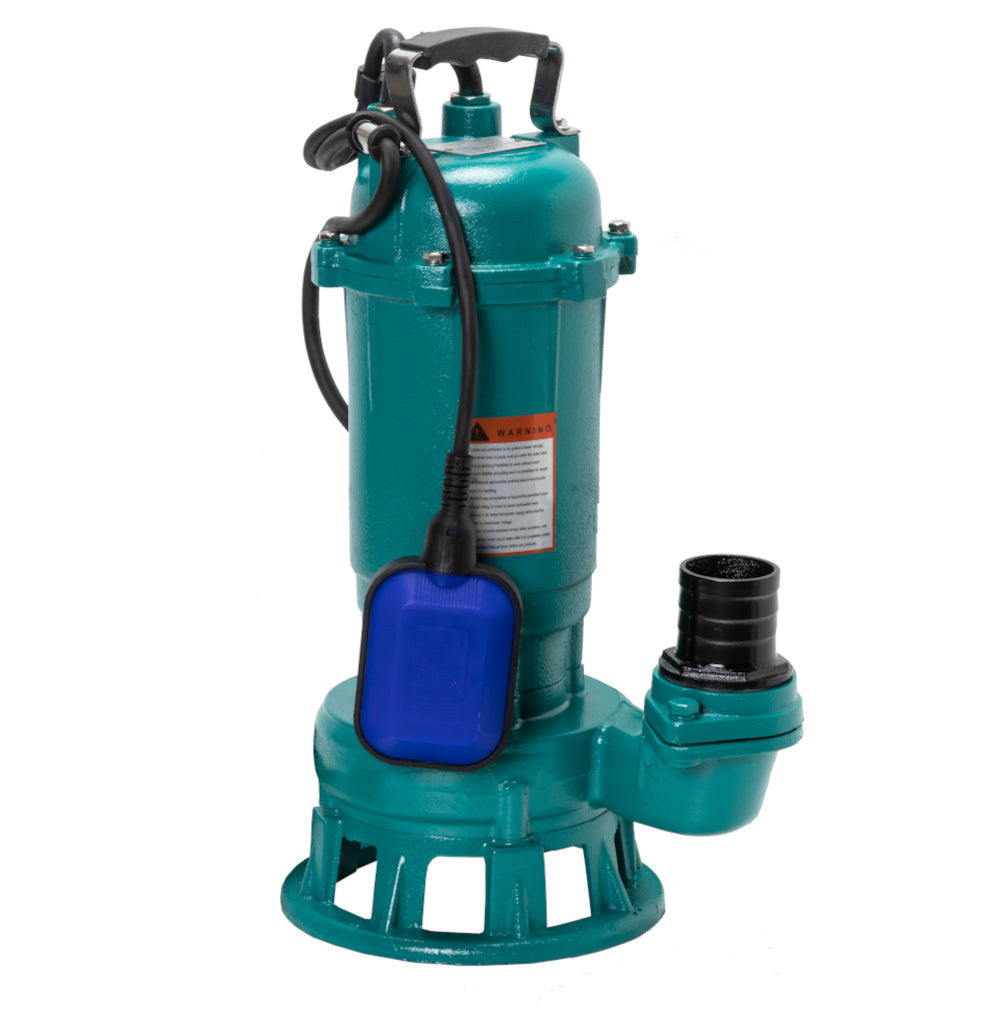

IBO CTR 1500 pump

Head: 18m

Flow: 400 L/min

Motor: 1500 W

Voltage: 230v

A submersible pump with a cutting system designed for pumping domestic sewage. In case of flooding, they can be used for draining rooms.

The robust construction of the pump is made of durable cast iron. The pumps are equipped with a float switch for automatic operation. To ensure reliable operation, the pumps are equipped with overload protection mounted on the cable.

APPLICATION:
Pumping sewage from domestic septic tanks;
draining flooded rooms, houses, garages and premises;
pumping rainwater and surface water from ponds, lakes and rivers.

Outlet: 2"

Amperage: 11 A

Dimensions Diameter/Height:  28.5 / 43.5 cm

Weight: 19.5 kg

Cable length: 10 m

Operating conditions:
• Maximum liquid temperature: 35°C
• Thermal protection
• CInsulation class:
• Operating mode: continuous
• Protection: IP68

Materials:
• Motor housing: grey cast iron
• Body: grey cast iron
• Shaft and rotor: stainless steel AISI 304
• Impeller: grey cast iron

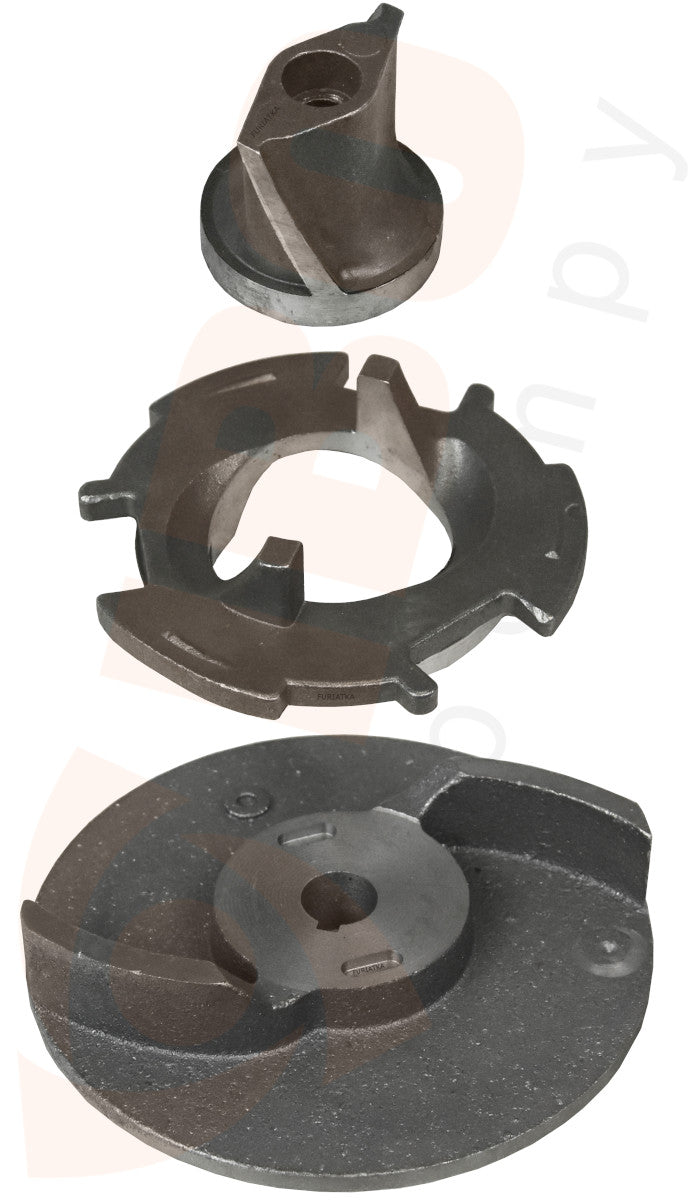

• Cutting knife: grey cast iron/stainless steel AISI 304
• Mechanical seal: SIC/graphite/NBR

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
