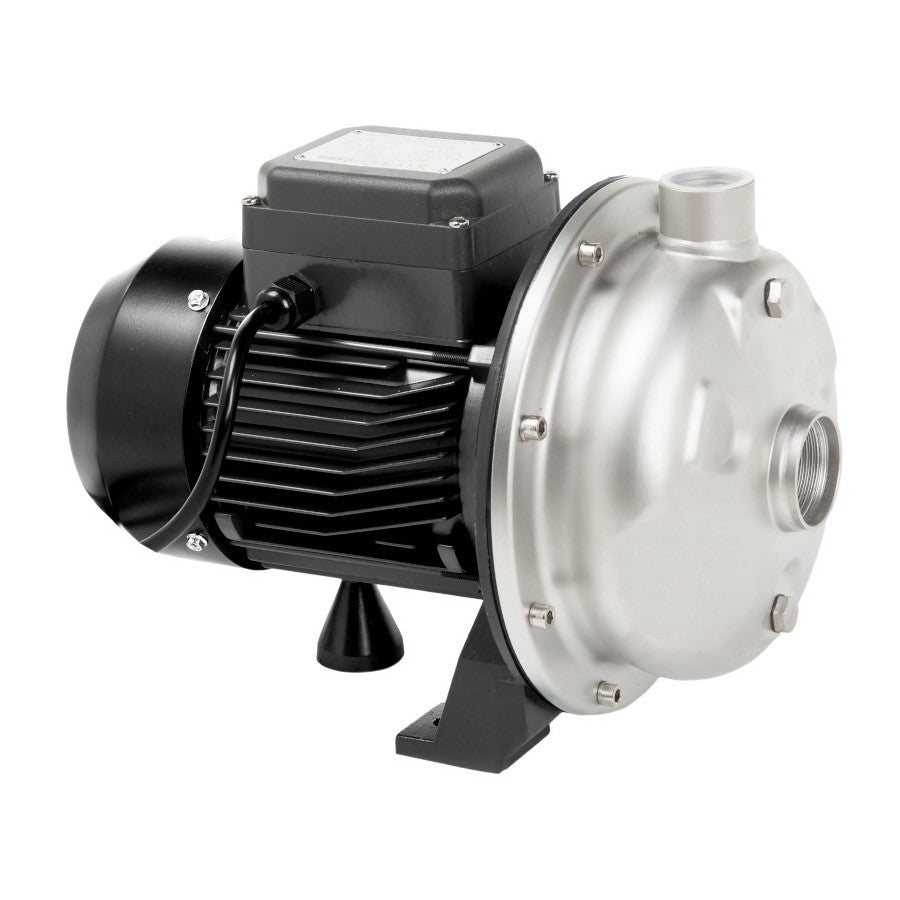

IBO CPM 18 INOX

Head: 18m

Flow: 150 L/min

Motor: 550 W

Voltage: 230v

A single-stage centrifugal pump designed for pumping non-aggressive
liquids with non-abrasive and non-absorbent solids content of 0.27 kg/m³. The maximum temperature of the pumped liquid is up to 60°C. The pump motor is equipped with thermal protection mounted in the motor winding. Hydraulic parts that come in contact with water are made entirely of stainless steel

APPLICATION:
• Agriculture: irrigation, drainage, water supply, pumping liquid fertilizers (not corrosive to AISI 304 steel);
• Industrial applications: supply of water, pumping liquids that are not corrosive to AISI 304 steel and non-explosive liquids;
• Air conditioning: heating, cooling. Household applications: supply of water, increasing
pressure.

Inlet/outlet: 1¼"/1"

Suction capacity: 7m

Amperage: 2.5 A

Dimensions Length/Height/Width:  31/23/21 cm

Weight: 9.1 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 60°C
• Maximum ambient temperature 50°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44

Materials:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: stainless steel AISI 304
• Pump end plate: stainless steel AISI 304
• Frame: Aluminium
• Mechanical seal: ceramics/graphite/NBR

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
