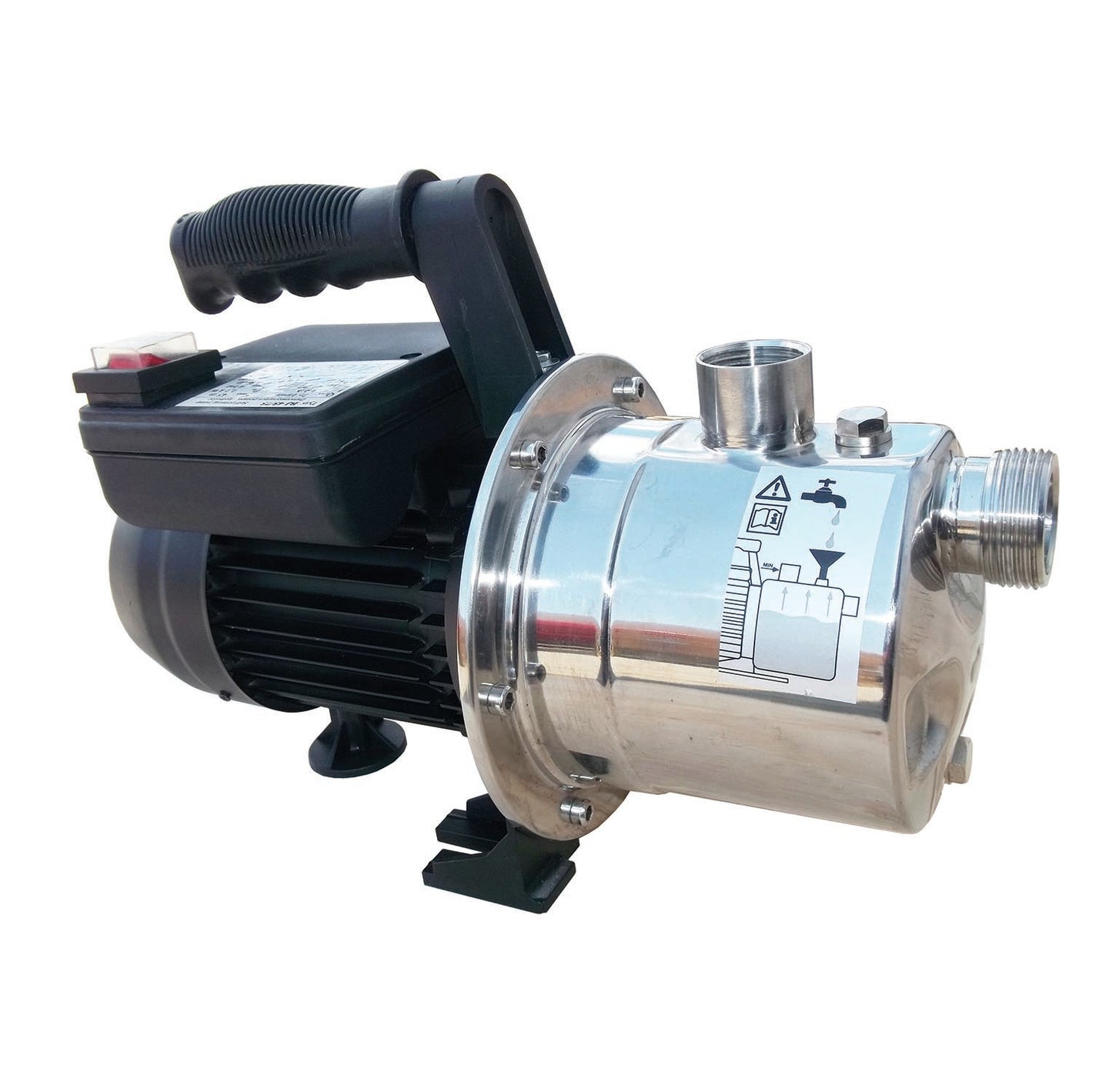

IBO BJ 45/75 pump

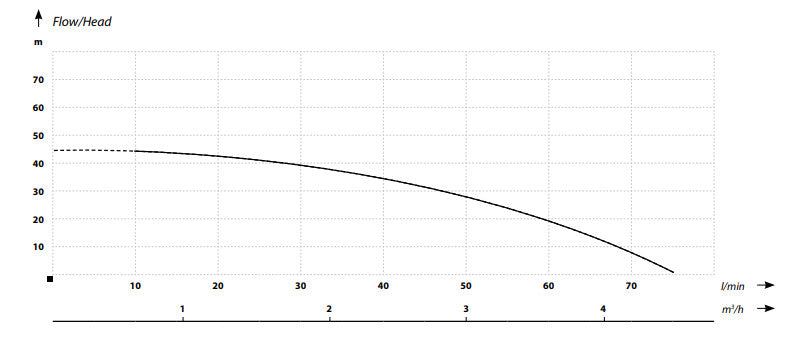

Head: 45m

Flow: 75 L/min

Motor: 1100 W

Voltage: 230v

The pump for pumping of clean cold water from wells, ponds etc. and for increasing pressure. BJ 45/75 is a single-stage self-priming centrifugal surface pump equipped with the Venturi tube system for increased suction capacity. Sections of pump body and shaft coming in contact with water are made of stainless steel (INOX design). The pump is manufactured to the highest quality standards in terms of the design and materials used. The pump has a power cable with a plug, and the pump motor is provided with thermal protection.

APPLICATION:
Supply of water to houses, holiday houses, allotments and gardens. When combined with pressure tanks, the pumps can be used for single- and multi-family residential housing and in industrial applications.

Inlet/outlet: 1¼"/1"

Suction capacity: 8m

Amperage: 3.9 A

Dimensions Length/Height/Width:  36/25/18 cm

Weight: 8.5 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 35°C
• Maximum ambient temperature 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44

Materials:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Frame: aluminium
• Pump end plate: stainless steel AISI 304
• Venturi tube: Noryl
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP
