IBO AJ 50/60 pump

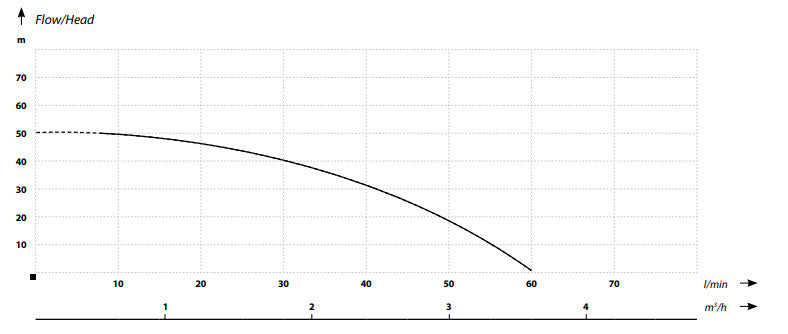

Head: 50m

Flow: 60 L/min

Motor: 1100 W

Voltage: 230v

Single-stage self-priming centrifugal surface pump equipped with the Venturi tube system for increased suction capacity, designed for pumping of clean cold water from own intakes and for increasing pressure. Sections of pump body and shaft that come in contact with water are made of stainless steel (INOX design). The pump has a power cable with a plug. The pump motor is provided with thermal protection.g.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Inlet/outlet: 1"/1"

Suction capacity: 8m

Amperage: 3.2 A

Dimensions Length/Height/Width:  37/21/20 cm

Weight: 10.5 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 35°C
• Maximum ambient temperature 40°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP44

Materials:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Frame: cast iron
• Pump end plate: stainless steel AISI 304
• Venturi tube: Noryl
• Mechanical seal: ceramics/graphite/NBR
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
