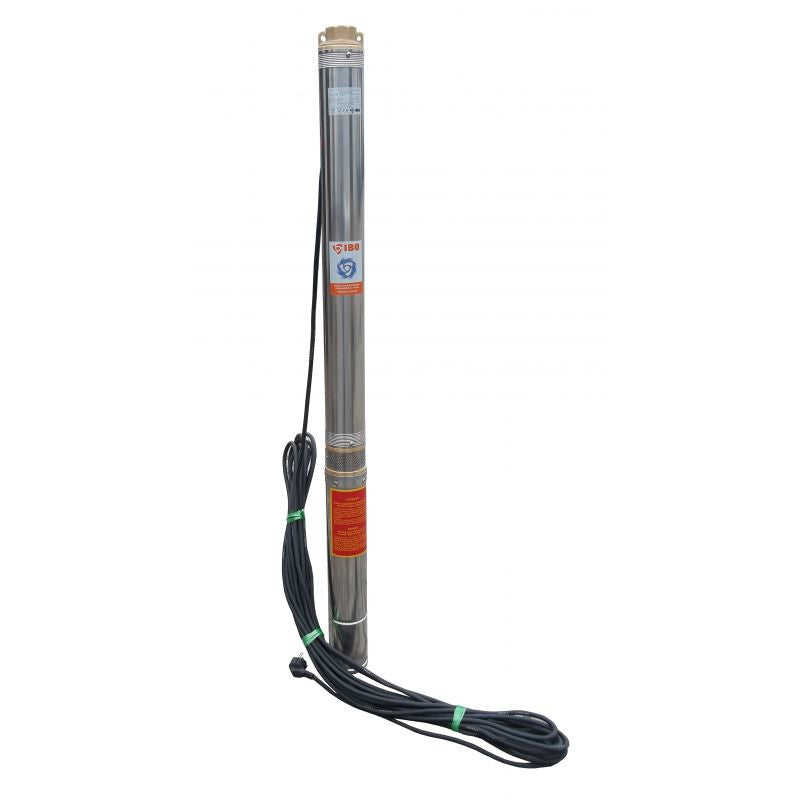

IBO 4 SDM 6/14 pump & cable 20m

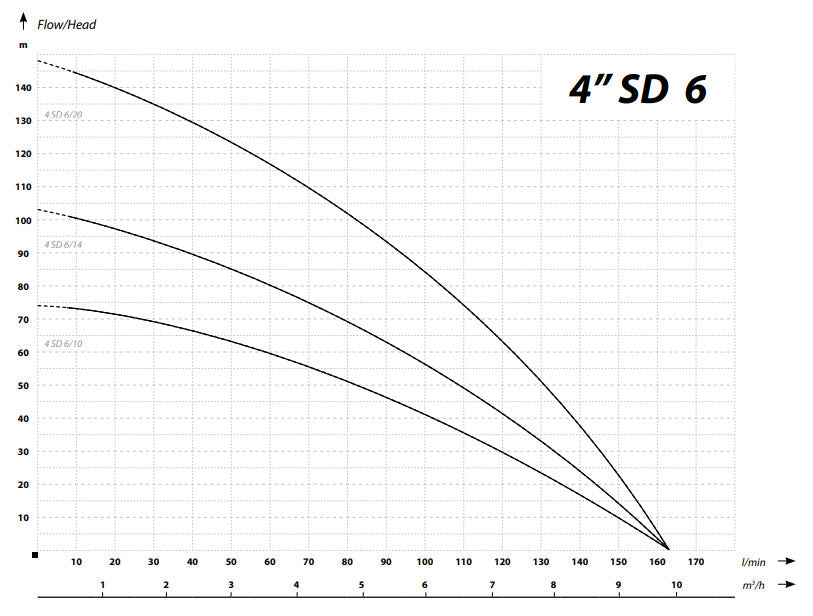

Head: 103 m

Flow: 162 L/min

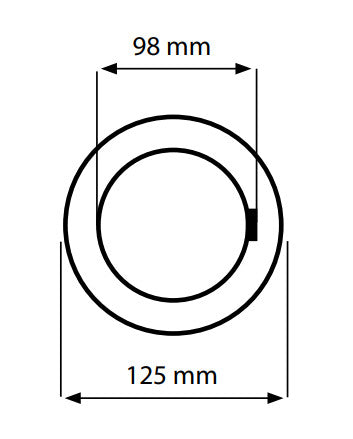

Diameter: 4" (98mm)

Motor: 2200 W

Voltage: 230v

Cable: 20 m

A multi-stage borehole pump with increased resistance to sand  (up to 5% of sand in water). The pump has "floating impellers" and wear-resistant materials: brass, AISI 304 stainless steel, and high quality plastic materials. Thermal protection.

This pump is equipped with a control box with capacitor and overcurrent protection.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 2"

Amperage: 15.5 A

Dimensions Length/Diameter:  1340 / 98 mm

Weight: 21 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature: 35°C
• Insulation class: F
• Operating mode: continuous
• Protection: IP68
• Workplace: vertical
• Max. number of starts per hour: 20
• Max. immersion depth: 100 m

Materials:
• Inlet/outlet: brass
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Venturi tube: Noryl
• Mechanical seal: Ceramics/Sic/NBR
• Motor: oil cooled

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
