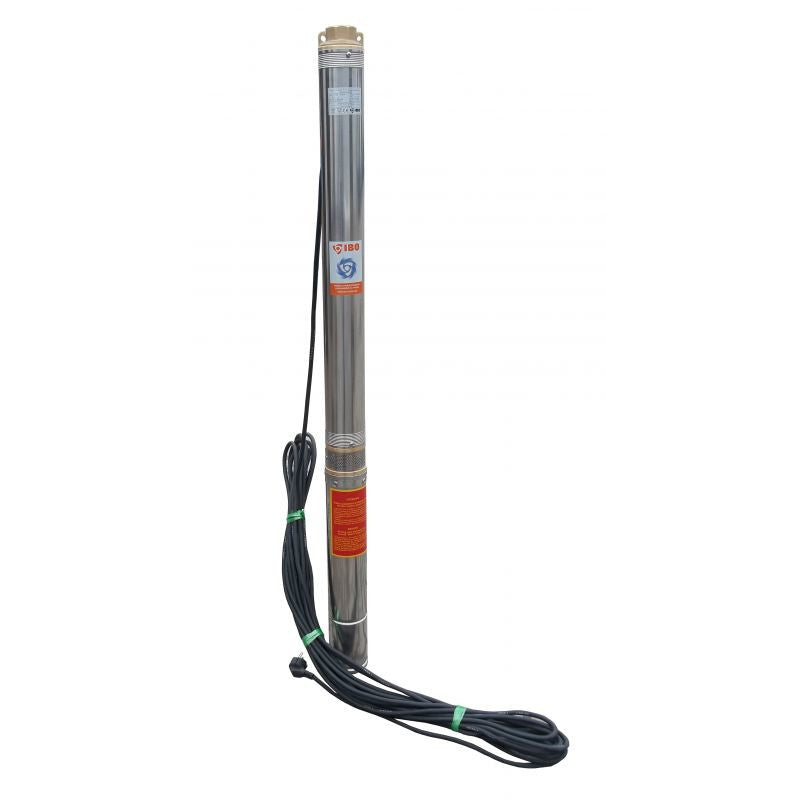

IBO 4 SDM 2/12 pump & cable 20m

Head: 85 m

Flow: 80 L/min

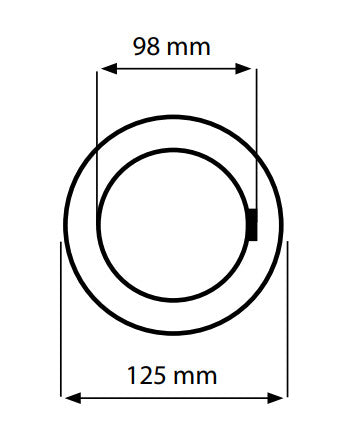

Diameter: 4" (98mm)

Motor: 750 W

Voltage: 230v

Cable: 20m

A multi-stage borehole pump with increased resistance to sand  (up to 5% of sand in water). The pump has "floating impellers" and wear-resistant materials: brass, AISI 304 stainless steel, and high quality plastic materials.

The pump capacitor is built into the motor. These pumps are equipped with thermal protection mounted in the motor winding.

This pump is suitable for minimum 4 inch diamater wells

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 1¼"

Amperage: 6.3 A

Dimensions Length/Diameter:  930 / 98 mm

Weight: 16 kg

Operating conditions:
• Maximum liquid temperature: 35°C
• Insulation class: F
• Operating mode: continuous
• Protection: IP68
• Workplace: vertical
• Max. number of starts per hour: 20
• Max. immersion depth: 100 m

Materials:
• Inlet/outlet: brass
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Venturi tube: Noryl
• Mechanical seal: SIC/SIC/NBR
• Motor: oil cooled

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
