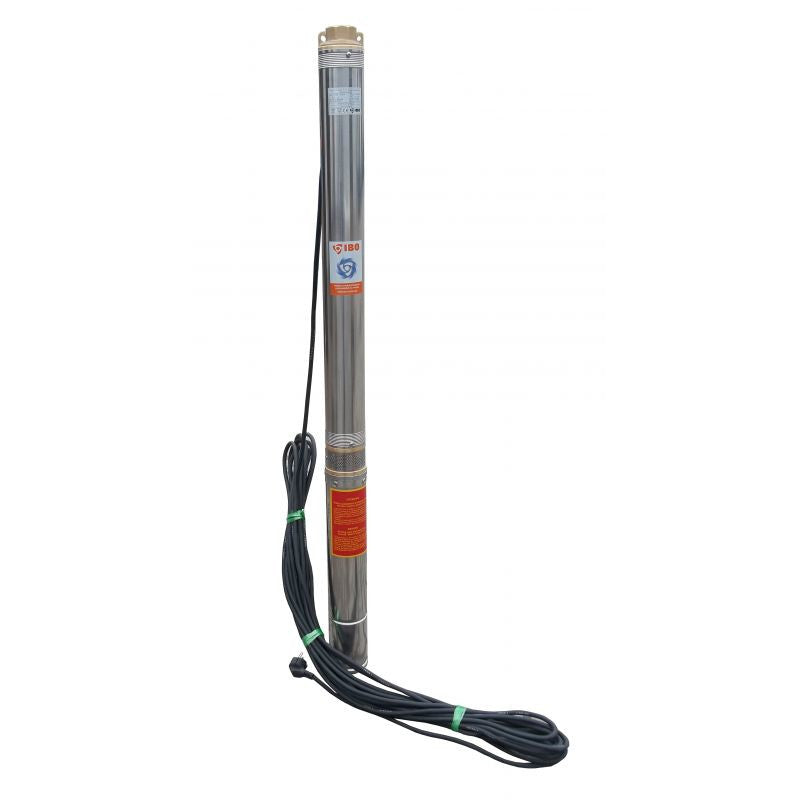

IBO 3 Ti 15 pump, cable 20m

Head: 60m

Flow: 50 L/min

Diameter: 3" (75mm)

Motor: 370 W

Voltage: 230v

Cable: 20m

A borehole pump with increased resistance to sand  (up to 5% of sand in water). The pump has "floating impellers" and wear-resistant materials: brass, AISI 304 stainless steel, and high quality plastic materials.

The pump capacitor is built into the motor. These pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 1"

Amperage: 3.2 A

Dimensions Length/Diameter:  1035 / 75 mm

Weight: 10 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 35°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP68
• Workplace: vertical
• Max. number of starts per hour: 20
• Max. immersion depth: 100 m

Materials:
• Inlet/outlet: brass
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Venturi tube: Noryl
• Mechanical seal: Ceramics/Sic/NBR
• Motor: oil cooling

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
