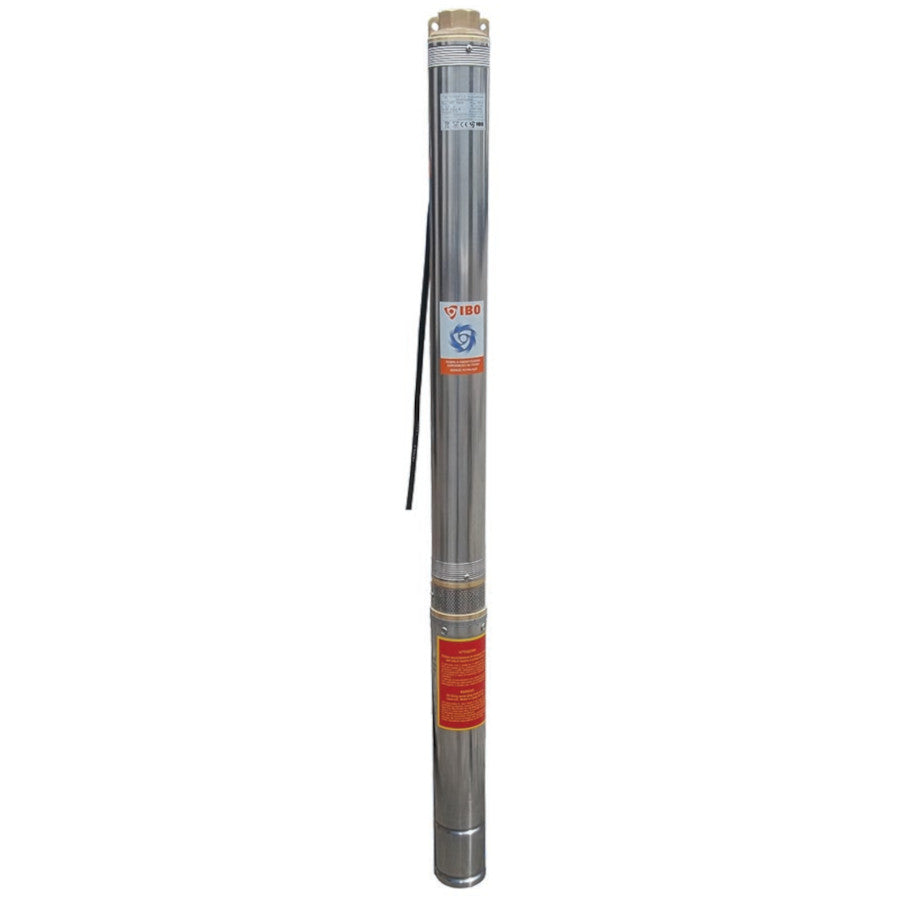

IBO 3 STM 24 pump

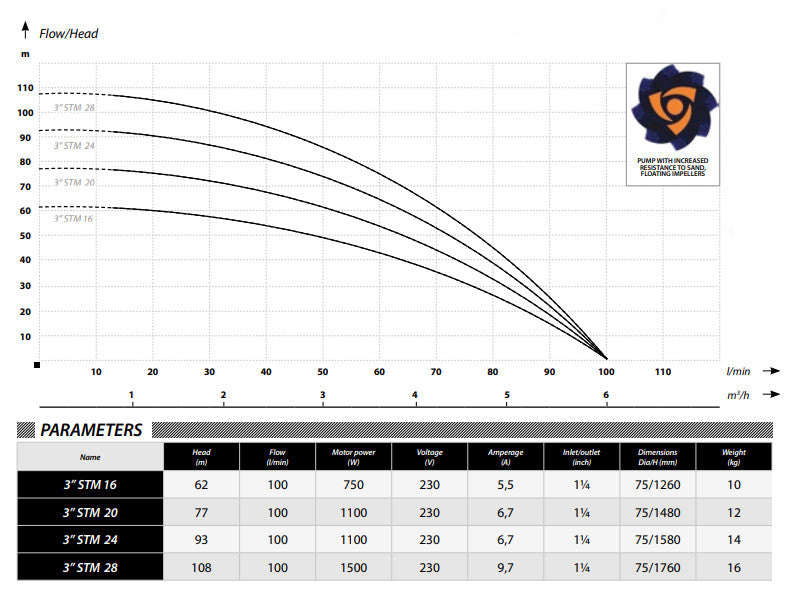

Head: 93m

Flow: 100 L/min

Diameter: 3" (75mm)

Motor: 1100 W

Voltage: 230v

Cable: 1.5m

A multi-stage borehole pump with increased resistance to sand (up to 5% of sand in water). The pump has "floating impellers" and wear-resistant materials: brass, AISI 304 stainless steel, and high quality plastic materials.

The pump capacitor is built into the motor. These pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 1¼"

Amperage: 6.7 A

Dimensions Length/Diameter:  1580 / 75 mm

Weight: 19 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature 35°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP68
• Workplace: vertical
• Max. number of starts per hour: 30
• Max. immersion depth: 80 m

Materials:
• Inlet/outlet: stainless steel AISI 304
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: stainless steel AISI 304
• Venturi tube: stainless steel AISI 304
• Mechanical seal: SIC/SIC/NBR
• Motor: oil cooling
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
