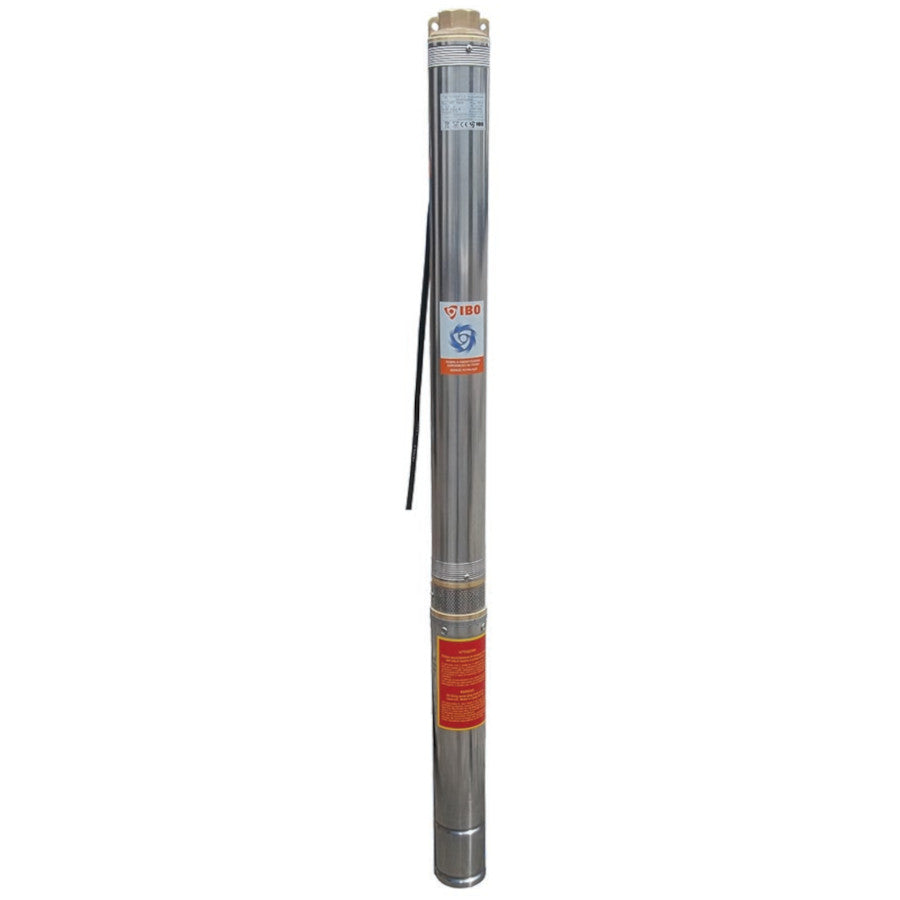

IBO 3 STM 16 pump

Head: 62m

Flow: 100 L/min

Diameter: 3" (75mm)

Motor: 750 W

Voltage: 230v

Cable: 1.5m

A multi-stage borehole pump with increased resistance to sand (up to 5% of sand in water). The pump has "floating impellers" and wear-resistant materials: brass, AISI 304 stainless steel, and high quality plastic materials.

The pump capacitor is built into the motor. These pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 1¼"

Amperage: 5.8 A

Dimensions Length/Diameter:  1260 / 75 mm

Weight: 15 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature: 35°C
• Insulation class: B
• Operating mode: continuous
• Protection: IP68
• Workplace: vertical
• Max. number of starts per hour: 30
• Max. immersion depth: 80 m

Materials:
• Inlet/outlet: stainless steel AISI 304
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: stainless steel AISI 304
• Venturi tube: stainless steel AISI 304
• Mechanical seal: SIC/SIC/NBR
• Motor: oil cooled

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
