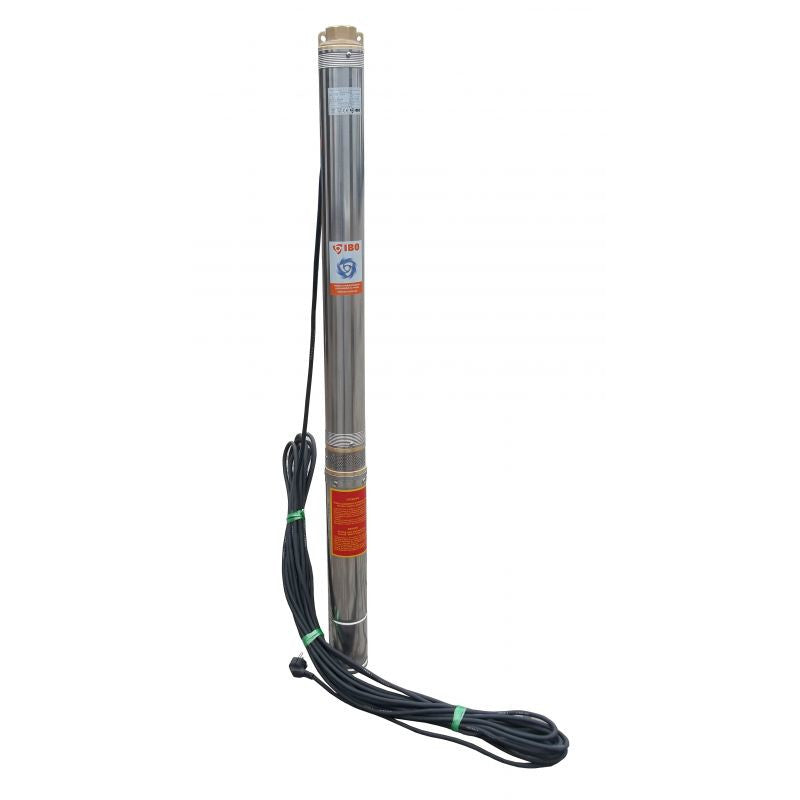

IBO 3,5 SDM 3/15 pump & cable 20m

Head: 90 m

Flow: 105 L/min

Diameter: 3½" (90mm)

Motor: 1100 W

Voltage: 230v

Cable: 20m

A multi-stage borehole pump with increased resistance to sand  (up to 5% of sand in water). The pump has "floating impellers" and wear-resistant materials: brass, AISI 304 stainless steel, and high quality plastic materials.

The pump capacitor is built into the motor. These pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 1½"

Amperage: 7.5 A

Dimensions Length/Diameter:  1215 / 90 mm

Weight: 13,6 kg

Operating conditions:
• Maximum liquid temperature 35°C
• Maximum ambient temperature 35°C
• Class B Insulation
• Operating mode - continuous
• Protection - IP68
• Workplace: vertical
• Max. number of starts per hour: 20
• Max. immersion depth: 100 m

Materials:
• Inlet/outlet: brass
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Venturi tube: Noryl
• Mechanical seal: Ceramics/Sic/NBR
• Motor: oil cooling
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
