IBO 3,5 SD 2/17 400V pump & cable 20m

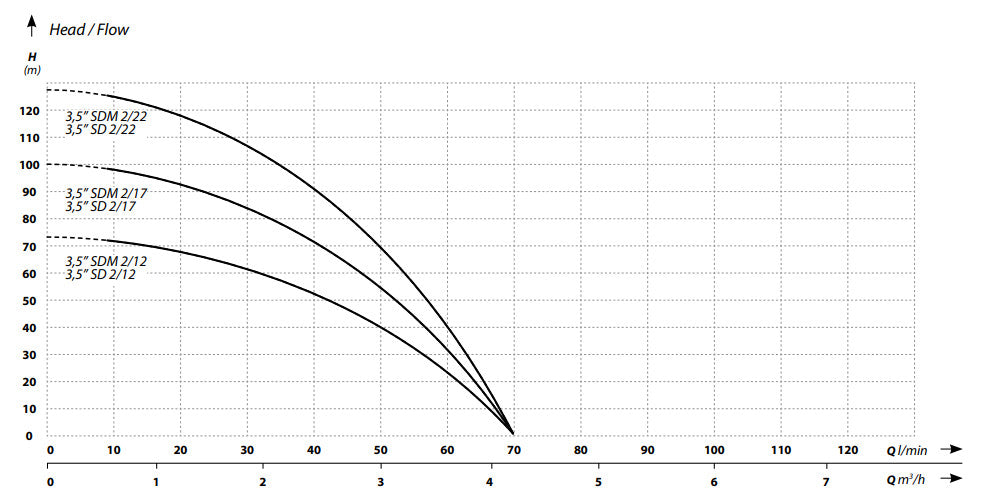

Head: 100 m

Flow: 70 L/min

Diameter: 3½" (90mm)

 Motor: 1100 W

Voltage: 400v

Cable: 20m

A multi-stage borehole pump with increased resistance to sand  (up to 5% of sand in water).

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 1¼"

Amperage: 3.2 A

Dimensions Length/Diameter:  1090 / 90 mm

Weight: 14.8 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature: 35°C
• Insulation class: B
• Operating mode: continuous
• Protection: IP68
• Workplace: vertical
• Max. number of starts per hour: 20
• Max. immersion depth: 100 m

Materials:
• Inlet/outlet: brass
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Diffusor: Noryl
• Mechanical seal: SIC/SIC/NBR
• Motor: oil cooled

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
