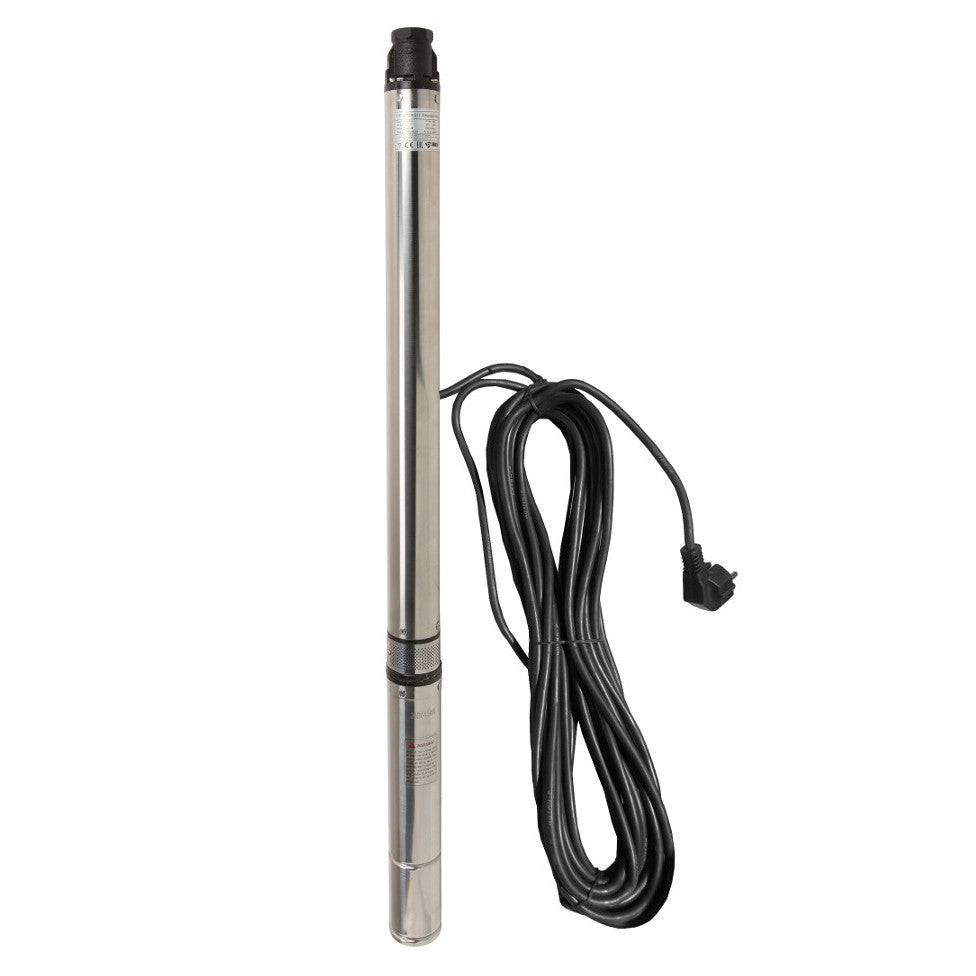

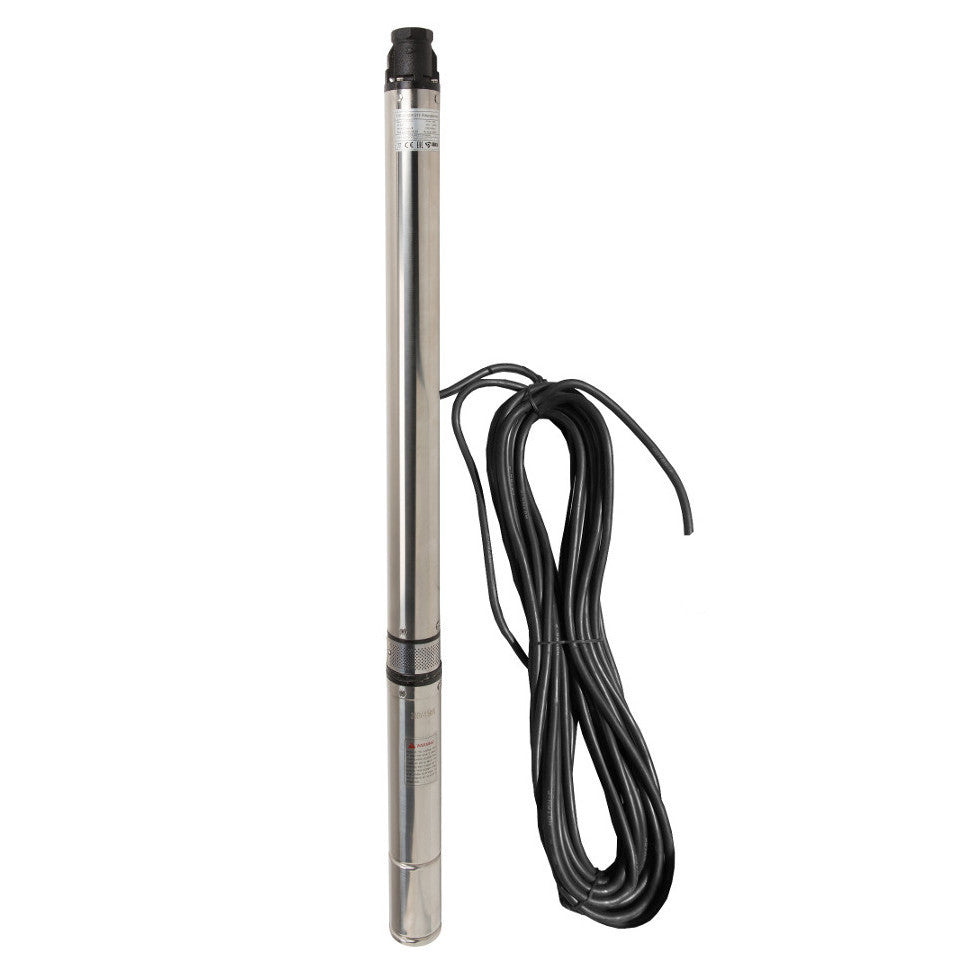

IBO 3,5 SCM 3/25 pump & cable 20m

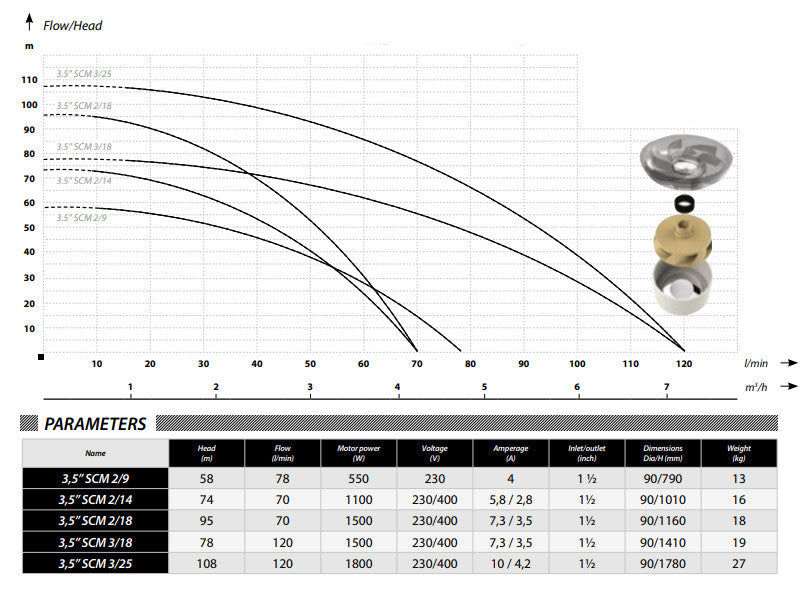

Head: 108 m

Flow: 120 L/min

Diameter: 3.5" (90mm)

Motor: 1800 W

Voltage: 230v

Cable: 20m

A multi-stage borehole pump suitable to wells with diameter not less than 100mm.

The pump capacitor is built into the motor. These pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 1½"

Amperage: 10 A

Dimensions Length/Diameter:  1780 / 90 mm

Weight: 27 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature: 35°C
• Insulation class: B
• Operating mode: continuous
• Protection: IP68
• Workplace: vertical
• Max. number of starts per hour: 20
• Max. immersion depth: 100 m

Materials:
• Inlet/outlet: grey cast iron
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Venturi tube: Noryl
• Mechanical seal: Ceramics/Sic/NBR
• Motor: oil cooling
• Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
