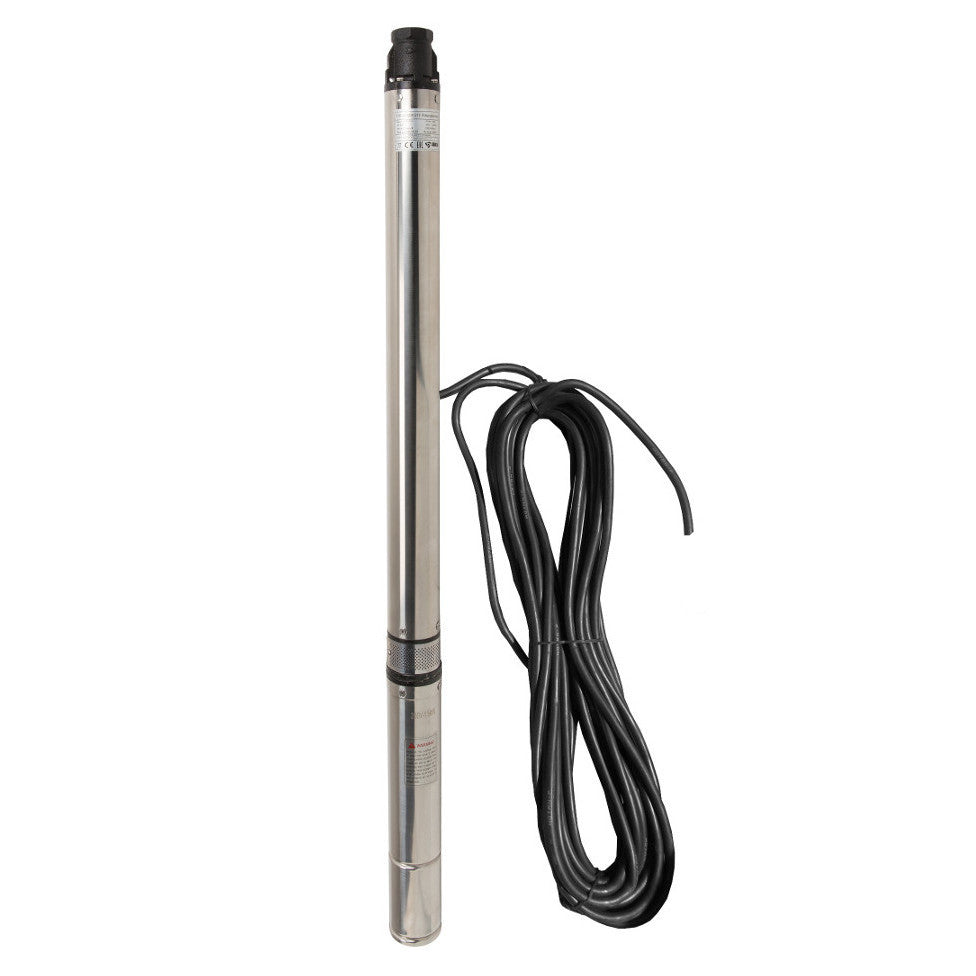

IBO 3,5 SC 3/25 pump & cable 20m

Head: 108 m

Flow: 120 L/min

Diameter: 3.5" (90mm)

Motor: 1800 W

Voltage: 400v

Cable: 20m

A multi-stage borehole pump suitable to wells with diameter not less than 100mm.

These pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 1½"

Amperage: 4.2 A

Dimensions Length/Diameter:  1780 / 90 mm

Weight: 27 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature: 35°C
• Insulation class: B
• Operating mode: continuous
• Protection: IP68
• Workplace: vertical
• Max. number of starts per hour: 20
• Max. immersion depth: 100 m

Materials:
• Inlet/outlet: grey cast iron
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Venturi tube: Noryl
• Mechanical seal: Ceramics/Sic/NBR
• Motor: oil cooled

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
