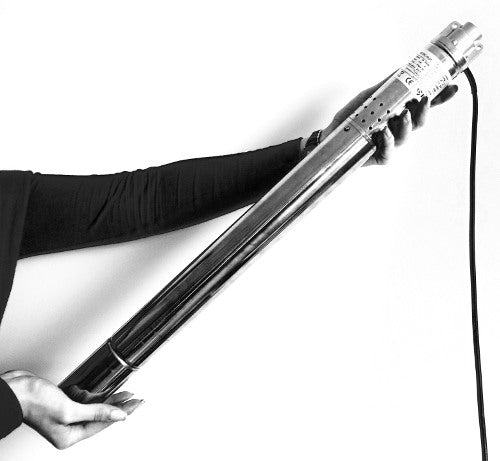

IBO 2 STING pump & cable 14m

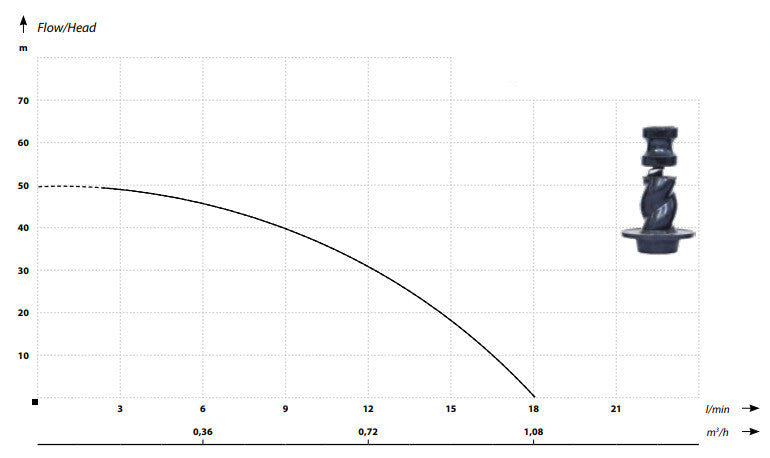

Head: 50m

Flow: 18 L/min

Diameter: 2" (52mm)

Motor: 370 W

Voltage: 230v

Cable: 14m

The diameter of the pump does not exceed 53 mm and the hydraulic section consists of the stator, rotor and clutch.

The pump capacitor is built into the motor. These pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: ½"

Amperage: 1.8 A

Dimensions Length/Diameter:  690 / 52 mm

Weight: 5.5 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature: 35°C
• Insulation class: B
• Operating mode: continuous
• Protection - IP68
• Workplace: vertical
• Max. number of starts per hour: 20
• Max. immersion depth: 80 m

Materials:
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Screw: stainless steel AISI 304
• Stator: NBR
• Rotor: stainless steel AISI 304
• Mechanical seal: SIC / SIC
• Motor: oil cooled

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
