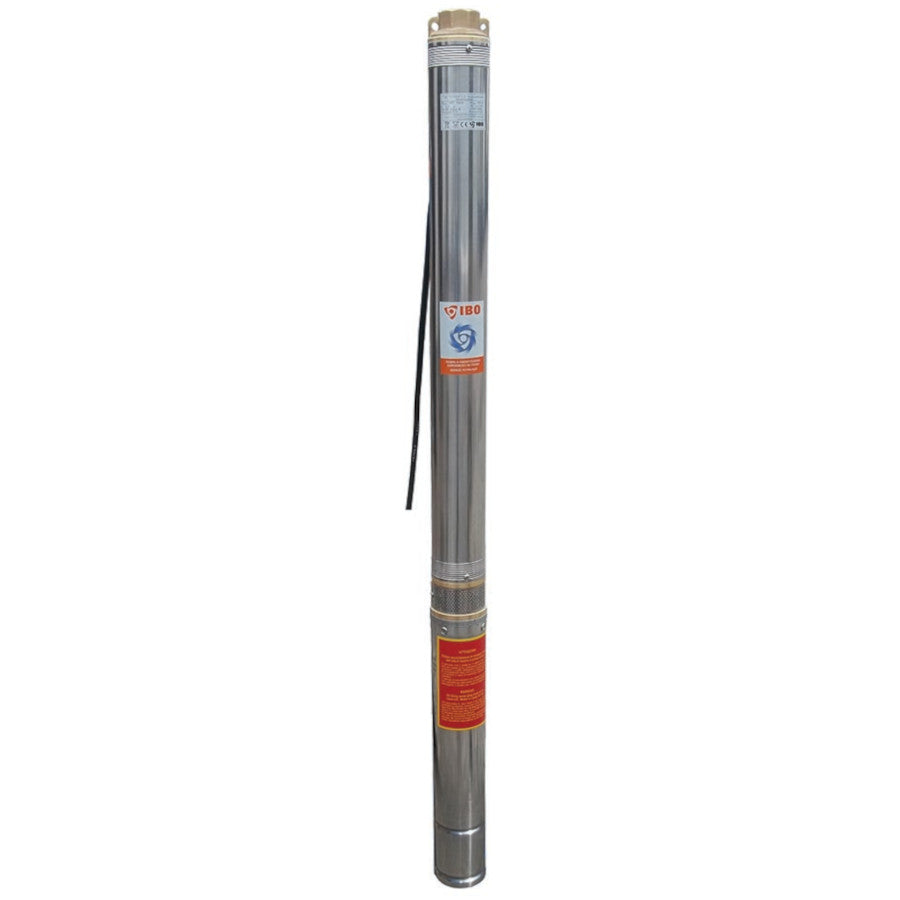

IBO 2,5 STM 24 pump

Head: 66m

Flow: 45 L/min

Diameter: 2½" (66mm)

Motor: 370 W

Voltage: 230v

Cable: 1.5m

A multi-stage borehole pump with increased resistance to sand  (up to 5% of sand in water). The pump has "floating impellers" and wear-resistant materials: brass, AISI 304 stainless steel, and high quality plastic materials.

The pump capacitor is built into the motor. These pumps are equipped with thermal protection mounted in the motor winding.

APPLICATION:
Supply of water to houses, holiday houses and gardens.
When combined with pressure tanks, the pumps can be used in residential housing, in industrial applications and for irrigation purposes.

Outlet: 1"

Amperage: 2.8 A

Dimensions Length/Diameter:  1305 / 66 mm

Weight: 7.8 kg

Warranty: 24 months

Operating conditions:
• Maximum liquid temperature: 35°C
• Insulation class: B
• Operating mode: continuous
• Protection: IP68
• Workplace: vertical
• Max. number of starts per hour: 20
• Max. immersion depth: 100 m

Materials:
• Inlet/outlet: brass
• Housing: stainless steel AISI 304
• Shaft and rotor: stainless steel AISI 304
• Impeller: Noryl
• Venturi tube: Noryl
• Mechanical seal: Ceramics/Sic/NBR
• Motor: oil cooling

Rotational speed of the electric motor: 2850RMP

Product color on pictures may be different than in reality.
